Poly(I:C) LMW

Low molecular weight polyinosine-polycytidylic acid – TLR3 agonist

Polyinosinic-polycytidylic acid (i.e. poly(I:C)) is a synthetic analog of double-stranded RNA (dsRNA), a molecular pattern associated with viral infection. InvivoGen’s Poly(I:C) LMW (Low Molecular Weight) is comprised of short strands of inosine poly(I) homopolymer annealed to strands of cytidine poly(C) homopolymer. The average size of Poly(I:C) LMW is 0.2 kb to 1 kb. Poly(I:C) LMW is functionally validated for TLR3 potency using HEK-Blue™ TLR3 Cells and the absence of contaminants (e.g. lipoproteins and endotoxin) is confirmed using TLR2 and TLR4 cellular assays, respectively.

Poly(I:C) recognition and signaling

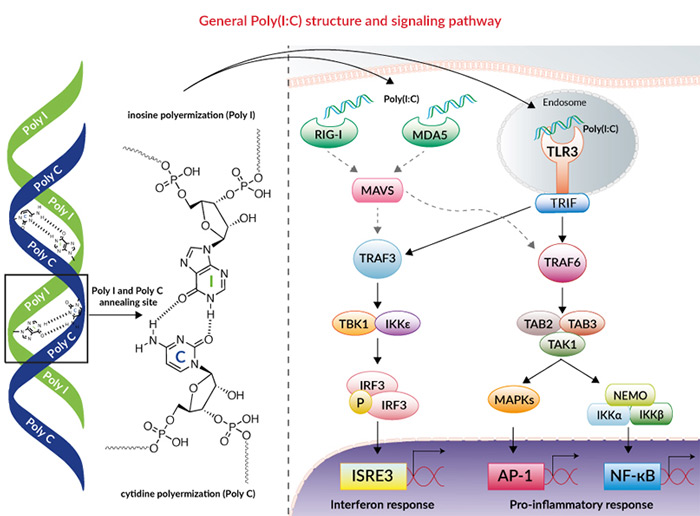

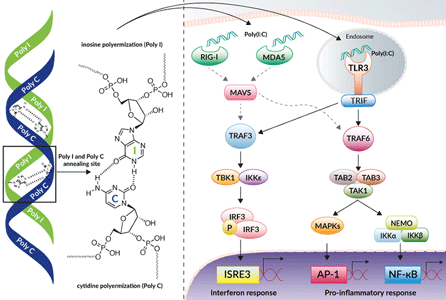

General Poly(I:C) structure and signaling pathway

Poly(I:C) is structurally similar to dsRNA, present in some viruses, and is therefore commonly used to model the actions of extracellular dsRNA.

Upon binding to its receptors, poly(I:C) is able to selectively activate numerous signaling pathways depending on the conditions. Poly(I:C) is recognized by endosomal Toll-like receptor 3 (TLR3) [1, 2]. Upon recognition, TLR3 activates the transcription factor interferon regulatory factor 3 (IRF3), through the adapter protein Toll-IL-1 receptor (TIR) domain-containing adapter (TRIF, also known as TICAM-1) [3]. Activation of IRF3 leads to the production of type I IFNs (e.g. IFN-β). Additionally, recognition of poly(I:C) can lead to the recruitment of TNF receptor-associated factor 6 (TRAF6) or receptor-interacting protein 1 (RIP1), with the subsequent activation of the transcription factors NF-κB and AP-1 [4]. Activation of these pathways triggers the production of inflammatory cytokines and chemokines such as TNF-α, IL-6, and CXCL10. Furthermore, poly(I:C) may activate the cytosolic RNA helicases retinoic acid-inducible protein I (RIG-I) and melanoma differentiation-associate gene 5 (MDA-5) [5].

Due to its ability to induce signaling via multiple inflammatory pathways, poly(I:C) is known to increase vaccine immunogenicity, especially in formulations that target dendritic cells. It has been shown that the superior qualities of poly(I:C) as a vaccine adjuvant may be due to synergy between TLR3 and MDA-5 activation [6].

Key features of Poly(I:C) LMW:

• Activator of TLR3
• Functionally validated
• Rhodamine-labeled poly(I:C) (LMW) is also available

References:

1. Alexopoulou L. et al., 2001. Recognition of double-stranded RNA and activation of NFkappaB by Toll-like receptor 3. Nature, 413(6857):732-8.
2. Matsumoto M. et al., 2002. Establishment of a monoclonal antibody against human Toll-like receptor 3 that blocks double-stranded RNA-mediated signaling. BBRC, 293(5):1364-9.
3. Yamamoto M. et al., 2003. Role of Adaptor TRIF in the MyD88-Independent Toll-Like Receptor Signaling Pathway. Science 301: 640.
4. Kawai T & Akira S., 2008. Toll-like receptor and RIG-I-like receptor signaling. Ann N Y Acad Sci. 1143:1-20. Review.
5. Kato H. et al., 2006. Differential roles of MDA5 and RIG-I helicases in the recognition of RNA viruses. Nature. 441(7089):101-5.
6. van den Boorn, J.G. et al. 2012. Nucleic acid adjuvants: toward an educated vaccine. Adv Immunol 114, 1-32.

Figures

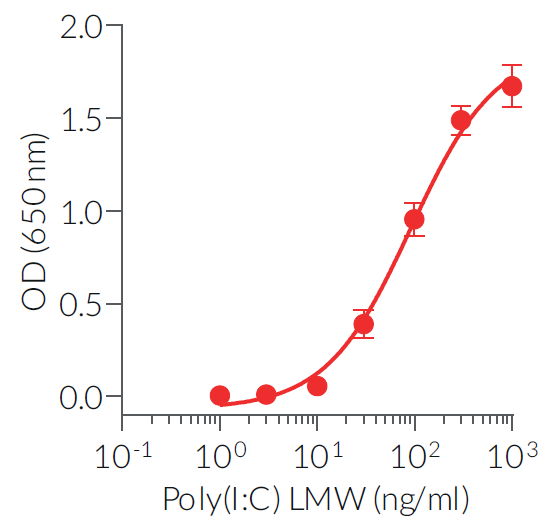

Poly(I:C) LMW is a potent activator of human (h)TLR3. HEK-Blue™ hTLR3 cells were incubated in HEK-Blue™ Detection medium and stimulated with increasing concentrations of Poly(I:C) LMW. After 24h incubation, the levels of NF-κB-induced SEAP were determined by reading the optical density (OD) at 650 nm (mean ± SEM).

Specifications

CAS number: 31852-29-6

Working concentration: 30 ng - 10 μg/ml

Solubility: 20 mg/ml in physiological water (NaCl 0.9%)

Quality Control:

• Absorbance spectrum
• TLR3 activity has been verified using HEK-Blue™ TLR3 cells.
• The absence of bacterial contamination (lipoproteins and endotoxins) has been confirmed using HEK-Blue-Lucia™ hTLR2 and HEK-Blue-Lucia™ mTLR4 cells.

Contents

Poly(I:C) LMW is provided lyophilized and with sterile endotoxin-free physiological water (NaCl 0.9%).

It is available in two quantities:

• 25 mg (#tlrl-picw) with 10 ml of sterile endotoxin-free physiological water
• 250 mg (#tlrl-picw-250) with 2 x 25ml of sterile endotoxin-free physiological water

Poly(I:C) LMW is shipped at room temperature

Upon receipt, store at 4°C.
