QUANTI-Luc™: Luciferase Detection Reagent

Product Unit size Cat. code Docs. Qty. Price

QUANTI-Luc™ 4 Lucia/Gaussia

Coelenterazine-based reagent for luciferase Flash and Glow detection (liquid)

Show product

500 tests (25 ml)

2 x 500 tests (2 x 25 ml)

5 x 500 tests (5 x 25 ml)

10 000 tests (500 ml)

rep-qlc4lg1
+-
$177

QUANTI-Luc™ 4 Renilla

Renilla luminescence detection kit - Liquid form

Show product

500 tests (25 ml)

2 x 500 tests (2 x 25 ml)

5 x 500 tests (5 x 25 ml)

rep-qlc4r1
+-
$180



QUANTI-Luc™ 4 luciferase detection kits

Coelenterazine-utilizing luciferase detection reagents

QUANTI-Luc™ 4 is a liquid ready-to-use bioluminescent assay reagent to measure the activity of Lucia® luciferase and other coelenterazine-utilizing luciferases. In order to meet your practical needs, InvivoGen offers:

— QUANTI-Luc™ 4 Lucia/Gaussia: for the detection of secreted Lucia® and Gaussia luciferases
— QUANTI-Luc™ 4 Renilla: for the detection of intracellular Renilla luciferase — NEW !



Lucia®, Gaussia, and Renilla luciferases catalyze the oxidation of their coelenterazine substrate with the emission of light (bioluminescence). The light signal produced correlates to the amount of luciferase protein expressed. It is quantified using a luminometer and expressed as relative light units (RLUs).

Our proprietary QUANTI-Luc™ 4 Reagent has been optimized to reduce the coelenterazine substrate auto-luminescence for a better detection range. The optimal pH value for maximal luciferase activity differs between Lucia®, Gaussia, and Renilla. The final pH of the reaction using our reagents confers one type of luminescence detection for Renilla and two types for Lucia/Gaussia (see figures):

Flash luminescence emits light with high intensity for a few seconds. It is ideal for end-point detection in small sample numbers, or when using microplate readers with reagent injectors.
Glow luminescence emits light with stable intensity for over 10 minutes. It is ideal for high-throughput screening (HTS) (i.e. the typical duration to read a 1536-well plate is ~7 minutes) or when using a luminometer without injectors (end-point detection).



QUANTI-Luc™ 4 Lucia/Gaussia

  • Two-component kit: QUANTI-Luc™ 4 Reagent and QUANTI-Luc™ 4 Stabilizer
  • Secreted luciferase detection: assess the activity of Lucia® and Gaussia secreted luciferases
  • Flash detection: without Stabilizer. This option is ideal for monitoring the cellular response to weak agonists
  • Glow detection: with Stabilizer
  • Convenient liquid formulation: allows extemporaneous dilution; no need for storing a working solution



QUANTI-Luc™ 4 Renilla

  • Two-component kit: QUANTI-Luc™ 4 Reagent and QUANTI-Luc™ 4 Lysis Buffer
  • Intracellular luciferase detection: assess the activity of Renilla intracellular luciferase after cell lysis
  • Low background: allows high signal-to-background ratio
  • Convenient liquid formulation: allows extemporaneous dilution; no need for storing a working solution



Each lot is thoroughly tested using InvivoGen's Lucia® reporter cell lines.



Learn moreLearn more about Lucia® luciferase

Note: Lucia® is a trademark of InvivoGen registered with the United States Patent and Trademark Office.



Figures

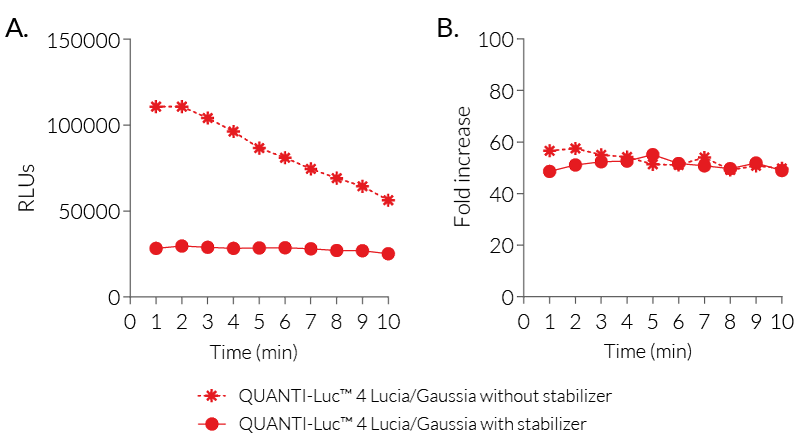

Lucia luciferase detection for 10 min using QUANTI-Luc™ 4 Lucia/Gaussia
Lucia luciferase detection for 10 min using QUANTI-Luc™ 4 Lucia/Gaussia

Lucia luciferase detection over 10 minutes using QUANTI-Luc™ 4 Lucia/Gaussia detection solution. THP1-cells, which feature an IRF-inducible Lucia luciferase reporter gene, were incubated with 30 µg/ml of 2'3'-cGAMP, a STING agonist. After overnight incubation, the Lucia activity in the supernatant was assessed using QUANTI-Luc™ 4 Lucia/Gaussia without or with stabilizer to measure the flash and glow luminescence. Data are shown as (A) relative light units (RLUs) or (B) fold change over non-induced cells.

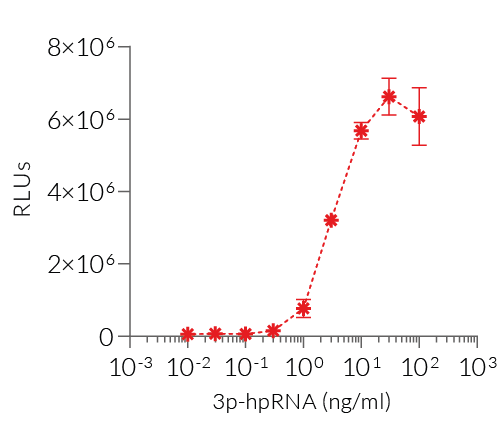

Lucia luciferase end-point detection using QUANTI-Luc™ 4 Lucia/Gaussia
Lucia luciferase end-point detection using QUANTI-Luc™ 4 Lucia/Gaussia

End-point detection of Lucia luciferase. A549 cells stably transfected with an IRF-inducible Lucia reporter gene were cultured with increasing concentrations of 3p-hpRNA complexed with LyoVec. After overnight incubation, the Lucia activity in the supernatant was assessed immediately after the addition of InvivoGen's QUANTI-Luc™ 4 Lucia/Gaussia (without stabilizer). Data are shown as relative light units (RLUs).

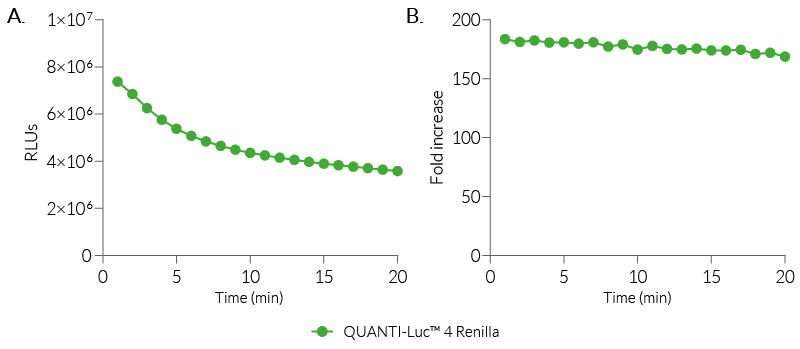

Renilla luciferase detection for 20 min using QUANTI-Luc™ 4 Renilla
Renilla luciferase detection for 20 min using QUANTI-Luc™ 4 Renilla

Renilla luciferase detection for 20 minutes using QUANTI-Luc™ 4 Renilla. HEK 293 cells were stably transfected with an NF-κB-inducible plasmid encoding the wildtype Renilla luciferase. These cells were incubated with 10 ng/ml of hTNF-α. After overnight incubation, the cells were lysed using QUANTI-Luc™ 4 lysis buffer and the Renilla activity was measured using the QUANTI-Luc™ 4 Renilla detection reagent. Data are shown as (A) relative light units (RLUs) or (B) fold change over non-induced cells.

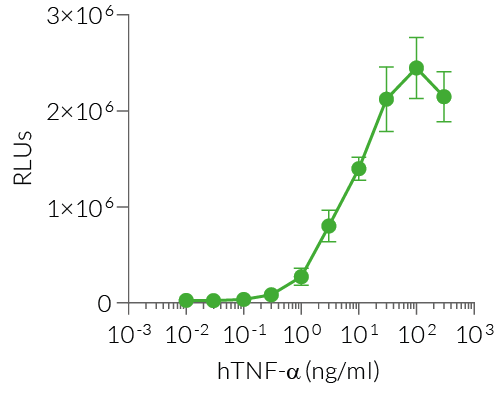

Renilla luciferase end-point detection using QUANTI-Luc™ 4 Renilla
Renilla luciferase end-point detection using QUANTI-Luc™ 4 Renilla

End-point detection of Renilla luciferase. HEK 293 cells, stably transfected with an NF-κB-inducible plasmid encoding the wildtype Renilla luciferase, were incubated with increasing concentrations of hTNF-α. After overnight incubation, the cells were lysed using QUANTI-Luc™ 4 lysis buffer, and the Renilla activity was measured using the QUANTI-Luc™ 4 Renilla detection reagent. Data are shown as relative light units (RLUs).

Back to the top

Specifications

QUANTI-Luc™ 4 Lucia/Gaussia

Cost-effective: One unit is sufficient for 5 x 96-well plates or 2 x 1536-well plates.

Practical: After preparation, QUANTI-Luc™ 4 Lucia/Gaussia is stable for 48 hours at 4°C and 1 month at -20°C.

Quality control: Each lot is thoroughly tested in functional assays using the recombinant Lucia® protein or Lucia® reporter cells. The detection of constitutive or inducible Gaussia has been verified using cellular assays.



QUANTI-Luc™ 4 Renilla

Cost-effective: One unit is sufficient for 5 x 96-well plates

Practical: After preparation, QUANTI-Luc™ 4 Reagent working solution is stable for 48 hours at 4°C and 1 month at -20°C. After preparation, QUANTI-Luc™ 4 Lysis Buffer working solution is stable for 1 week at 4°C and 1 month at -20°C.

Quality control: The detection of constitutive or inducible Renilla has been verified using cellular assays.

Back to the top

Contents

QUANTI-Luc™ 4 Lucia/Gaussia

QUANTI-Luc™ 4 Lucia/Gaussia is available in four pack sizes:

  • rep-qlc4lg1: 1 tube of QUANTI-Luc™ 4 Reagent (20X) and 1 tube of QUANTI-Luc™ 4 Stabilizer (25X)
  • rep-qlc4lg2: 2 tubes of QUANTI-Luc™ 4 Reagent (20X) and 2 tubes of QUANTI-Luc™ 4 Stabilizer (25X)
  • rep-qlc4lg5: 5 tubes of QUANTI-Luc™ 4 Reagent (20X) and 5 tubes of QUANTI-Luc™ 4 Stabilizer (25X)
  • rep-qlc4lg20: 1 bottle of QUANTI-Luc™ 4 Reagent (20X) and 1 bottle of QUANTI-Luc™ 4 Stabilizer (25X)

One tube of QUANTI-Luc™ 4 Reagent is sufficient for 5 x 96-well plates (standard procedure) or 2 x 1536-well plates (HTS procedure).

 QUANTI-Luc™ 4 Reagent and  QUANTI-Luc™ 4 Stabilizer are shipped at room temperature.

 Upon receipt, store QUANTI-Luc™ 4 Reagent and QUANTI-Luc™ 4 Stabilizer at -20°C.

 After preparation, the product is stable for 48 hours at 4°C and at least 1 month at -20°C.

Note: This product is photosensitive and should be protected from light.





QUANTI-Luc™ 4 Renilla

QUANTI-Luc™ 4 Renilla is available in three pack sizes:

  • rep-qlc4r1: 1 tube of QUANTI-Luc™ 4 Reagent (20X) and 1 bottle of QUANTI-Luc™ 4 Lysis Buffer (5X)
  • rep-qlc4r2: 2 tubes of QUANTI-Luc™ 4 Reagent (20X) and 1 bottle of QUANTI-Luc™ 4 Lysis Buffer (5X)
  • rep-qlc4r5: 5 tubes of QUANTI-Luc™ 4 Reagent (20X) and 2 bottles of QUANTI-Luc™ 4 Lysis Buffer (5X)

One tube of QUANTI-Luc™ 4 Reagent is sufficient for 5 x 96-well plates

 QUANTI-Luc™ 4 Reagent and  QUANTI-Luc™ 4 Lysis Buffer are shipped at room temperature.

 Upon receipt, store QUANTI-Luc™ 4 Reagent and QUANTI-Luc™ 4 Lysis Buffer at -20°C.

 After preparation, the product is stable for 48 hours at 4°C and at least 1 month at -20°C.

Note: This product is photosensitive and should be protected from light.

Back to the top

Notification:  QUANTI-Luc™ 4 is a liquid formulation. Our previous powder formulations, QUANTI-Luc™, and QUANTI-Luc™ Gold are discontinued.
