THP-1 Lucia Reporter Cells (NF-κB)

NF-κB–Lucia Reporter Monocytes

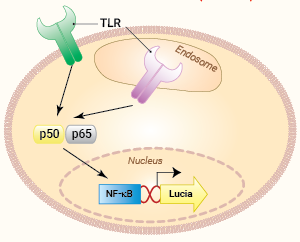

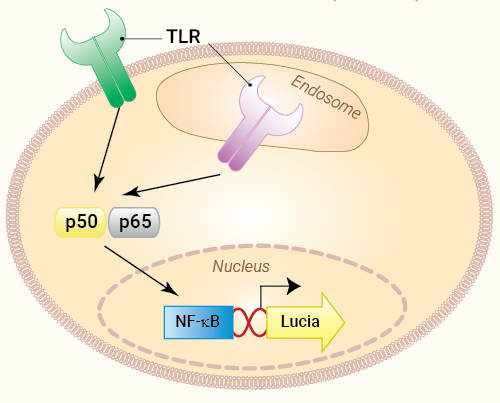

Signaling pathways in THP1-Lucia™ NF-κB cells
(click to enlarge)

THP1-Lucia™ NF-κB cells were specifically designed for monitoring the NF-κB signal transduction pathway in a physiologically relevant cell line. THP1-Lucia™ cells were derived from the human THP-1 monocyte cell line by stable integration of an NF-κB-inducible Lucia luciferase reporter construct.

As a result, THP1-Lucia™  NF-κB cells allow the monitoring of NF-κB activation by assessing the activity of the secreted Lucia luciferase. The level of NF-κB-induced Lucia in the cell culture supernatant is readily assessed with QUANTI-Luc™ 4 Lucia/Gaussia, a luciferase detection reagent.

THP-1 cells endogenously express many pattern-recognition receptors (PRRs), including Toll-like receptors (TLRs), the stimulator of interferon genes (STING), and RIG-I-like receptors (RLR). Therefore, THP1-Lucia™ NF-κB cells are highly responsive to PRR agonists that trigger the NF-κB pathway (see figure).

Key features

• Functionally validated with a selection of PRR ligands and cytokines
• Readily assessable NF-κB activation by assessing the Lucia activity

Note: A new clone is provided with an improved reporter/background signal ratio. The cat code has been changed accordingly (thpl-nfkbv2).

Figures

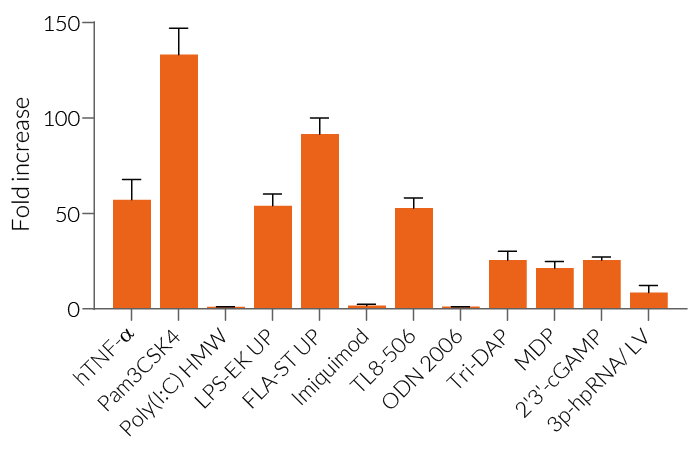

NF-κB responses in THP1-Lucia™ NF-κB cells. Cells were incubated for 24 hours with various PRR ligands: Pam3CSK4 (TLR2 ligand, 10 ng/ml), Poly(I:C) HMW (TLR3 ligand, 10 µg/ml), LPS-EK Ultrapure (UP) (TLR4 ligand, 10 ng/ml), FLA-ST UP (TLR5 ligand, 10 ng/ml), Imiquimod (TLR7 ligand, 10 µg/ml), TL8-506 (TLR8 ligand, 1 µg/ml), ODN 2006 (TLR9 ligand, 10 µg/ml), Tri-DAP (NOD1 ligand, 10 µg/ml), MDP (NOD2 ligand, 10 µg/ml), 2’3’-cGAMP (STING ligand, 100 µg/ml), and 3p-hpRNA complexed with LyoVec™ (LV) (RIG-I ligand, 1 µg/ml). Human TNF-α (10 ng/ml) was used as an NF-κB-positive control. After 24h incubation, the NF-κB response was assessed by measuring the activity of Lucia luciferase in the supernatant using QUANTI-Luc™. Data are shown in fold response over non-induced cells (mean ± SEM).

Specifications

Antibiotic resistance: Zeocin®

Growth medium: RPMI 1640, 2 mM L-glutamine, 25 mM HEPES, 10% heat-inactivated fetal bovine serum, 100 μg/ml Normocin™, Pen-Strep (100 U/ml-100 μg/ml)

Quality Control:

• Reporter activity has been verified by functional assays.
• The stability for 20 passages, following thawing, has been verified.
• These cells are guaranteed mycoplasma-free.

Contents

• 1 vial of THP1-Lucia™ NF-kB cells (3-7 x 10⁶ cells)
• 1 ml of Normocin™ (50 mg/ml)
• 1 ml of  Zeocin® (100 mg/ml)
• 1 tube of QUANTI-Luc™ 4 Reagent, a Lucia luciferase detection reagent (sufficient to prepare 25 ml)

Shipped on dry ice (Europe, USA, Canada, and some areas in Asia)
