VACV-70/ LyoVec™

CDS activation with intracellular VACV-70

CDS Agonist - complexed with transfection reagent

VACV-70 is a 70 bp oligonucleotide containing viral DNA motifs [1]. VACV-70 derives from the vaccinia virus DNA. Transfected VACV-70 was shown to potently induce type I interferons (IFNs) in a TLR-, DAI- and RNA Pol III-independent, but STING-, TBK1- and IRF3-dependent manner. VACV-70 oligonucleotide is recognized by the IFI16 DNA sensor [1].
VACV-70/ LyoVec™ is a formulation of VACV-70 complexed with the cationic lipid transfection reagent LyoVec™ to facilitate its cellular uptake.

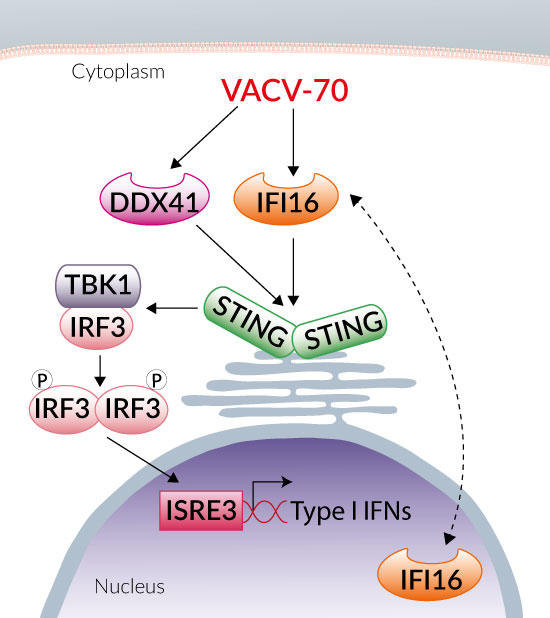

Mode of action:

Intracellular DNA from pathogens is recognized by multiple CDSs, which display contextual preferences for the recognition of DNA [1].
Transfected VACV-70 has been shown to potently induce IFN-β in a Toll-like receptor (TLR)-, DNA-dependent activator of IRFs (DAI)-, and RNA polymerase III (Pol III)-independent, but STING-, TBK1- and IFN regulatory factor 3 (IRF3)-dependent manner [1,2]. Studies have demonstrated that transfected VACV-70 is recognized by DDX41 [2] and IFI16 [1].

Key features of VACV-70/LyoVec™:

• Potent inducer of type I IFNs
• Complexed with the cationic lipid LyoVec™
• Each lot is functionally validated

InvivoGen also provides VACV-70c (control) a single-stranded oligonucleotide that does not induce type I IFNs, unlike its double-stranded counterpart [1].

Read our review on cytosolic DNA sensors

Reference:

1. Unterholzner L. et al., 2010. IFI16 is an innate immune sensor for intracellular DNA. Nat Immunol. 11(11):997-1004.
2. Sharma S. & Fitzgerald KA. 2011. Innate immune sensing of DNA. PLoS Pathog. 7(4):e1001310.

Specifications

Activity: CDS agonist

Formulation: complexed with the transfection reagent LyoVec™

Control: VACV-70c single-stranded oligonucleotide

Contents

• 100 µg lyophilized VACV-70/LyoVec™
  Note: Each vial contains 25 μg of VACV-70 complexed with 50 μg LyoVec™.
• 10 ml endotoxin-free water

 Product is shipped at room temperature

 Store at -20°C

Details

IFI16

IFN γ-inducible protein 16 (IFI16) and its murine orthologue p204 induce innate immune responses against single-stranded (ss) and double-stranded (ds) cytosolic DNA [1,2]. Located predominantly in the nucleus and in small fractions in the cytoplasm, IFI16 can function to activate type I interferon (IFN) responses via STING-mediated phosphorylation of TBK1 and IFN regulatory factor 3 (IRF3) [3]. IFI16 has been reported to sense the DNA of several viruses such as herpesviruses (HSV), cytomegalovirus, and Epstein-Barr virus [1].

DDX41

DEAD-box protein 41 (DDX41) has been shown to induce IFN-β responses upon stimulation with poly(dA:dT), HSV-1, Listeria monocytogenes, and adenovirus [4,5].  This IFN-β induction by DDX41 has been shown to occur via the STING/TBK1/IRF3 signaling pathway. DDX41 was also found to bind to and control the IFN response to cyclic-dinucleotides (CDNs) such as cyclic-di-AMP and cyclic-di-GMP [6].

Reference:

1. Zahid A. et al, 2020. Molecular and Structural Basis of DNA Sensors in Antiviral Innate Immunity. Front Immunol. 2020 Nov 30;11:613039.
2. Unterholzner L. et al., 2010. IFI16 is an innate immune sensor for intracellular DNA. Nat Immunol. 11(11):997-1004.
3. Stratmann S.A. et al., 2015. The innate immune sensor IFI16 recognizes foreign DNA in the nucleus by scanning along the duplex. Elife (2015) 4:e11721.
4. Zhang Z. et al., 2011. The helicase DDX41 senses intracellular DNA mediated by the adaptor STING in dendritic cells. Nat Immunol.12(10):959-65.
5. Stein S.C.& Falck-Pedersen E., 2012. Sensing adenovirus infection: activation of interferon regulatory factor 3 in RAW 264.7 cells. J Virol. 86:4527–4537.
6. Parvatiyar K. et al., 2012. The helicase DDX41 recognizes the bacterial secondary messengers cyclic di-GMP and cyclic di-AMP to activate a type I interferon immune response. Nat Immunol. 13:1155–1161.
