Human TLR4 Reporter HEK293 Cells (NF-κB and IRF)

Product Unit size Cat. code Docs. Qty. Price

HEK-Dual™ hTLR4 Cells

Human TLR4 expressing HEK293 dual reporter cells (NF-κB and IRF pathways)

Show product

3-7 x 10e6 cells

hkd-htlr4
+-
$1,589

NF-κB–SEAP and IRF-Lucia reporter HEK293 cells expressing human TLR4

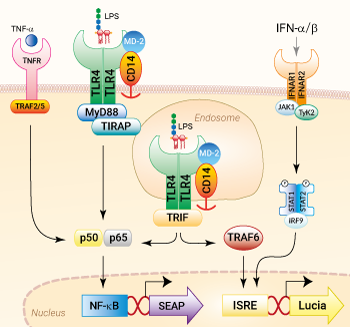

Signaling pathways in HEK-Dual™ hTLR4 cells

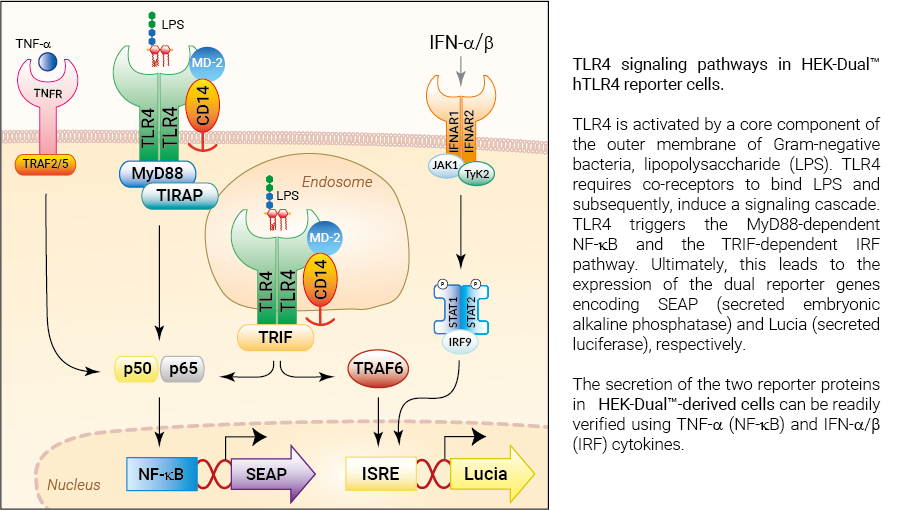

Signaling pathways in HEK-Dual™ hTLR4 cells

HEK-Dual™ hTLR4 cells were engineered from HEK-Dual™ cells, a human embryonic kidney HEK293-derived cell line, to study the Toll-like receptor 4 (TLR4)-dependent NF-κB and IRF responses upon stimulation with lipopolysaccharide (LPS). LPS is a major constituent of the outer membrane of Gram-negative bacteria and the main microbial mediator implicated in the pathogenesis of sepsis and septic shock [1].

More details More details



Description

HEK-Dual™ hTLR4 cells feature the stable expression of TLR4, as well as the adapter proteins MD-2 (myeloid differentiation factor 2) and CD14 (cluster of differentiation 14). These cells also express two inducible reporter genes for SEAP (secreted embryonic alkaline phosphatase) and Lucia luciferase. As a result, these cells allow the simultaneous study of the NF-κB pathway, by monitoring the activity of SEAP, and the IRF pathway, by assessing the activity of the secreted Lucia luciferase. Upon TLR4 activation, both reporter proteins are readily measurable in the cell culture supernatant when using QUANTI-Blue™, a SEAP detection reagent, and QUANTI-Luc™ 4 Lucia/Gaussia, a Lucia luciferase detection reagent.

HEK-Dual™ hTLR4 cells are highly responsive to LPS. They show potent NF-κB and IRF responses upon incubation with TLR4-specific ligands, such as smooth LPS-EB Ultrapure (UP) or rough LPS-EK UP, when compared to HEK-Blue™ hTLR4 cells and the control cell line HEK-Dual™ (see figures).



Of note, HEK293 cells express endogenous levels of various PRRs, including TLR3 and TLR5, and therefore might respond to their cognate ligands (see figures)



Key features

  • Stable expression of human TLR4, MD-2, and CD14
  • Increased and reproducible response to rough and smooth LPS
  • Distinct monitoring of TLR4-dependent NF-κB or IRF activation by assessing the SEAP and Lucia luciferase activities

Applications

  • Detecting sample contamination with LPS
  • Defining the role of TLR4 in LPS-induced signaling pathways
  • Screening for TLR4 agonists or antagonists



1. Godowski, P., 2005. A smooth operator for LPS responses. Nat Immunol 6, 544–546.

Figures

NF-κB responses of HEK-Blue™ hTLR4 vs. HEK-Dual™ hTLR4
NF-κB responses of HEK-Blue™ hTLR4 vs. HEK-Dual™ hTLR4

NF-κB responses of HEK-Blue™ hTLR4 vs. HEK-Dual™ hTLR4​. HEK-Blue™ hTLR4 and HEK-Dual™ hTLR4 cells were stimulated with various TLR4 agonists: LPS-EB Ultrapure (UP) (1 ng/ml), LPS-EK UP (1 ng/ml), LPS-B5 UP (100 pg/ml), or synthetic MPLAs (100 ng/ml). After overnight incubation, the activation of NF-κB was assessed by measuring the activity of SEAP in the supernatant using QUANTI-Blue™ Solution. Data are shown as optical density (OD) at 650 nm (mean ± SEM).

NF-κB responses in hTLR4-expressing HEK-Dual™ -derived cells
NF-κB responses in hTLR4-expressing HEK-Dual™ -derived cells

NF-κB responses in HEK-Dual™ -derived cells. HEK-Dual™ and HEK-Dual™ hTLR4 cells were incubated for 24 hours with cytokines and various TLR agonists: Human TNF-α (NF-κB-positive control, 1 ng/ml), hIFN-β (IRF-positive control, 1000 U/ml), Pam3CSK4 (TLR2 ligand, 100 ng/ml), Poly(I:C) HMW (TLR3 ligand, 1 µg/ml), LPS-EB Ultrapure (UP) (TLR4 ligand, 1 ng/ml), LPS-EK UP (TLR4 ligand, 1 ng/ml), LPS-B5 UP (TLR4 ligand, 100 pg/ml), CRX-527 (TLR4 ligand, 1 ng/ml), MPLAs (TLR4 ligand, 100 ng/ml), FLA-ST UP (TLR5 ligand, 100 ng/ml), R848 (TLR7/8 ligand, 10 µg/ml), or ODN 2006 (TLR9 ligand, 10 µg/ml). After 24h incubation, the NF-kB-induced SEAP activity was assessed using QUANTI-Blue™. Data are shown as optical density (OD) at 650 nm (mean ± SEM).

IRF responses in hTLR4-expressing HEK-Dual™ -derived cells
IRF responses in hTLR4-expressing HEK-Dual™ -derived cells

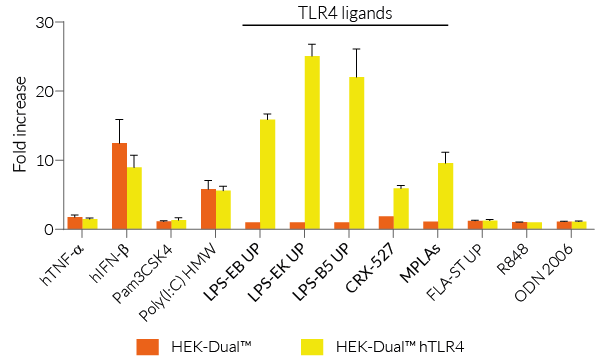

IRF responses in HEK-Dual™ -derived cells. HEK-Dual™ and HEK-Dual™ hTLR4 cells were incubated for 24 hours with cytokines and various TLR agonists: Human TNF-α (NF-κB-positive control, 10 ng/ml), hIFN-β (IRF-positive control, 10 U/ml), Pam3CSK4 (TLR2 ligand, 100 ng/ml), Poly(I:C) HMW (TLR3 ligand, 100 ng/ml), LPS-EB Ultrapure (UP) (TLR4 ligand, 10 ng/ml), LPS-EK UP (TLR4 ligand, 10 ng/ml), LPS-B5 UP (TLR4 ligand, 1 ng/ml), CRX-527 (TLR4 ligand, 100 ng/ml), MPLAs (TLR4 ligand, 100 ng/ml), FLA-ST UP (TLR5 ligand, 100 ng/ml), R848 (TLR7/8 ligand, 10 µg/ml), or ODN 2006 (TLR9 ligand, 10 µg/ml). After 24h incubation, the IRF response was assessed by measuring the activity of Lucia luciferase in the supernatant using QUANTI-Luc™. Data are shown in fold response over non-induced cells (mean ± SEM).

Inhibition of TLR4-dependent NF-κB and IRF responses using CLI-095
Inhibition of TLR4-dependent NF-κB and IRF responses using CLI-095

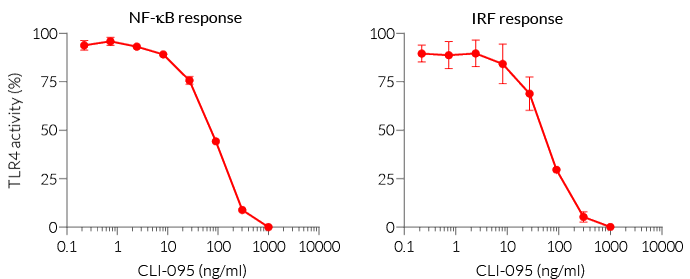

Inhibition of hTLR4 signaling pathway using CLI-095. HEK-Dual™ hTLR4 cells were incubated in the presence of increasing concentrations of CLI-095 for 3 hours before adding 10 ng/ml LPS-EK Ultrapure (TLR4 agonist). After overnight incubation, the inhibitory effect of CLI-095 on the NF-κB and IRF pathways was determined by measuring the reduction of SEAP and Lucia production in the supernatant using the QUANTI-Blue™ and QUANTI-Lucia™ detection reagents, respectively. Data are shown as a percentage (%) of maximal TLR4 activation (without inhibitor).
