THP1-Dual™ MD2-CD14-TLR4 & KO-TLR4 Cells

Product Unit size Cat. code Docs. Qty. Price

THP1-Dual™ MD2-CD14-TLR4 Cells

TLR4, MD-2 and CD14 expressing NF-κB and IRF reporter monocytes

Show product

3-7 x 10e6 cells

thpd-mctlr4
+-
$1,928

THP1-Dual™ MD2-CD14 KO-TLR4 Cells

TLR4 knockout, MD-2 and CD14 expressing NF-κB and IRF reporter monocytes

Show product

3-7 x 10e6 cells

thpd-mckotlr4
+-
$1,928

CD14 and MD-2 expressing dual reporter monocytes for LPS studies

InvivoGen expands its collection of human monocytic reporter cell lines designed to monitor the TLR4 (Toll-like receptor 4)-dependent NF-kB and IRF responses upon stimulation with rough and smooth LPS (lipopolysaccharide):

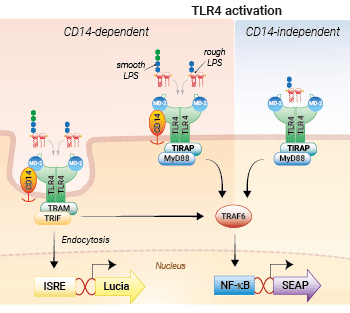

Rough and smooth LPS-induced signaling
Rough and smooth LPS-induced signaling

— THP1-Dual™ MD2-CD14-TLR4 cells

— THP1-Dual™ MD2-CD14 KO-TLR4 (control) cells




These cells stably express MD-2 (myeloid differentiation factor 2) and CD14 (cluster of differentiation 14), two co-adaptors important for LPS-induced TLR4 signaling. Additionally, THP1-Dual™ MD2-CD14-TLR4 cells feature TLR4 overexpression and their control THP1-Dual™ MD2-CD14 KO-TLR4, a biallelic TLR4 knockout (KO). They were generated from the THP1-Dual™ cell line harboring two inducible reporter genes for SEAP (secreted embryonic alkaline phosphatase) and Lucia luciferase. This allows the simultaneous monitoring of the MyD88-dependent NF-κB and TRIF-dependent IRF pathway, respectively.



Due to the stable expression of CD14 and MD-2, the TRIF-dependent IRF response to LPS is completely restored in these cells. The MyD88-dependent NF-kB activation is strongly increased upon stimulation using smooth or rough LPS. The additional overexpression of hTLR4 enhances the sensitivity to various TLR4 ligands. As expected, the control cells THP1-Dual™ MD2-CD14 KO-TLR4 do not respond to any type of LPS (see figures below). Moreover, this KO cell line can be used to distinguish between TLR4- and other TLRs-mediated responses.



THP1-Dual™ MD2-CD14-TLR4 and their control derive from the human leukemia monocytic THP-1 cells. This cell line has become a common model to study monocyte/macrophage functions, mechanisms and signaling pathways. It expresses several pattern recognition receptors (PRRs), including TLR4, which upon sensing of their cognate PAMPs (pathogen-associated molecular patterns) trigger the activation of the NF-kB and/or IRF transcription factors [1]. TLR4-induced IRF-activation in THP-1-derived cells (e.g. THP1-Dual™) requires their differentiation into macrophages using PMA (Phorbol 12-myristate 13-acetate). Overexpression of MD-2/CD14 in THP1-Dual™ MD2-CD14-TLR4 and THP1-Dual™ MD2-CD14 KO-TLR4 (control) cells eliminates this requirement, thus TLR4-dependent IRF activation can be studied without PMA treatment.


The adaptor proteins, MD-2 and CD14, are essential for TLR4-dependent sensing of rough or smooth LPS. The wildtype, smooth (s)LPS requires CD14 co-expression, whereas the truncated form of LPS (rough LPS) can also interact with TLR4 in a CD14-independent manner. Their recognition lead to NF-κB and IRF activation and the production of proinflammatory cytokines and interferons, respectively [2-3]. Thus, the LPS-induced TLR4 responses are highly inflammatory, which makes it a remarkable therapeutic target [3].

More details More details



highlight Bypass PMA Differentiation Bias: THP1-Dual™ MD2-CD14-TLR4 cells (& control) do not require PMA treatment prior to IRF-stimulation (see figures).



Key Features

  • Stable overexpression of CD14 and MD-2
  • Verified overexpression or biallelic KO of the hTLR4 gene
  • Increased and reproducible response to rLPS and sLPS
  • Measurable IRF response without PMA-differentiation
  • Distinct monitoring of NF-κB or IRF activation by assessing the SEAP and Lucia luciferase activities

Applications

  • Detecting sample contamination with rLPS and sLPS
  • Defining the role of TLR4 in LPS-induced signaling pathways
  • Screening for TLR4 agonists or antagonists
  • Highlighting possible overlap between TLR4 and other TLR-related signaling pathways (e.g. TLR2)



References:

1. Hornung V. et al. 2002. Quantitative expression of toll-like receptor 1-10 mRNA in cellular subsets of human peripheral blood mononuclear cells and sensitivity to CpG oligodeoxynucleotides. J Immunol.; 168(9):4531-7.
2. Cochet, F. et al. 2017. The Role of Carbohydrates in the Lipopolysaccharide (LPS)/Toll-Like Receptor 4 (TLR4) Signalling. Int J Mol Sci 18.
3. Kuzmich, N.N. et al. 2017. TLR4 Signaling Pathway Modulators as Potential Therapeutics in Inflammation and Sepsis. Vaccines (Basel) 5.

Figures

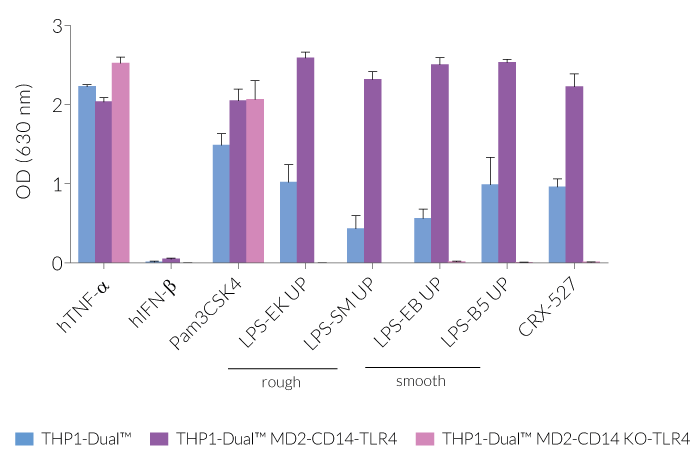

Functional validation of NF-κB response
Functional validation of NF-κB response

NF-κB responses in THP1-Dual™ -derived cells. THP1-Dual™, THP1-Dual™ MD2-CD14-TLR4 cells and THP1-Dual™ MD2-CD14 KO-TLR4 cells were incubated for 24 hours with a variaty of rough and smooth LPS: LPS-EK Ultrapure (UP) (rough; 10 ng/ml), LPS-SM UP (rough; 10 ng/ml), LPS-EB UP (smooth; 10 ng/ml), LPS-B5 UP (smooth; 1 ng/ml) and CRX-527 (synthetic; 10 ng/ml). Human (h)TNF-α (10 ng/ml) and hIFN-β (1x10³ U/ml) were used as a NF-κB-SEAP positive control and as a IRF positive control, respectively. The TLR2-TLR1 agonist Pam3CSK4 (10 ng/ml) served as a functional control. After overnight incubation, the activation of NF-κB was assessed by measuring the activity of SEAP in the supernatant using QUANTI-Blue™ Solution. Data are shown as optical density (OD) at 630 nm (mean ± SEM).

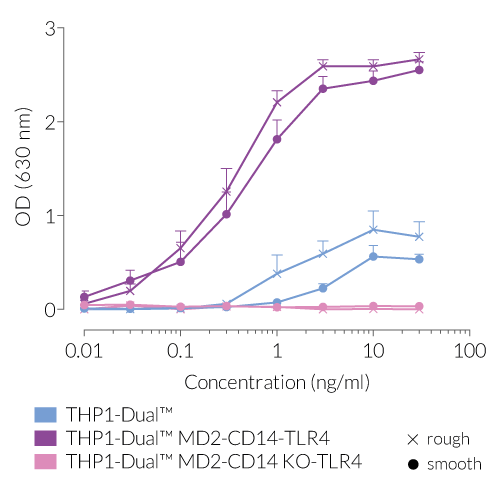

NF-κB responses after stimulation with rough or smooth LPS
NF-κB responses after stimulation with rough or smooth LPS

NF-κB responses after stimulation with rough or smooth LPS in THP1-Dual™ -derived cells. THP1-Dual™, THP1-Dual™ MD2-CD14-TLR4  cells and THP1-Dual™ MD2-CD14 KO-TLR4 cells were incubated for 24 hours with increasing concentration of rough (LPS-EK UP) and smooth (LPS-EB UP) LPS. After overnight incubation, the activation of NF-κB was assessed by measuring the activity of SEAP in the supernatant using QUANTI‑Blue™ Solution. Data are shown as optical density (OD) at 630 nm (mean ± SEM).

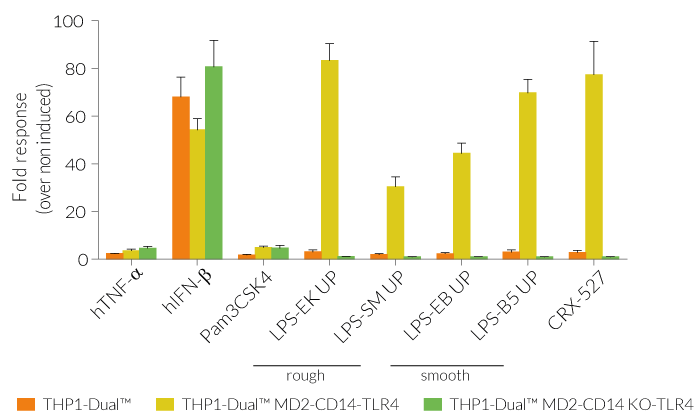

Functional validation of IRF response
Functional validation of IRF response

IRF responses in THP1-Dual™ -derived cells. THP1-Dual™, THP1-Dual™ MD2-CD14-TLR4 cells and THP1-Dual™ MD2-CD14 KO-TLR4 cells were incubated for 24 hours with a variaty of rough and smooth LPS: LPS-EK Ultrapure (UP) (rough; 10 ng/ml), LPS-SM UP (rough; 10 ng/ml), LPS-EB UP (smooth; 10 ng/ml), LPS-B5 UP (smooth; 1 ng/ml) and CRX-527 (synthetic; 10 ng/ml). Human (h)TNF-α (10 ng/ml) and hIFN-β (1x10³ U/ml) were used as a NF-κB-SEAP positive control and as a IRF positive control, respectively. The TLR2-TLR6 agonist Pam3CSK4 (10 ng/ml) served as a functional control. After overnight incubation, the IRF response was assessed by measuring the activity of Lucia luciferase in the supernatant using QUANTI-Luc™. Data are shown in fold response over non-induced cells (mean ± SEM).

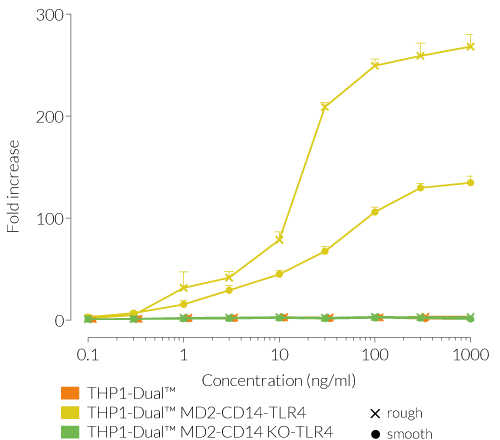

IRF responses after stimulation with rough or smooth LPS
IRF responses after stimulation with rough or smooth LPS

IRF responses after stimulation with rough or smooth LPS in THP1-Dual™ -derived cells. THP1-Dual™, THP1-Dual™ MD2-CD14-TLR4  cells and THP1-Dual™ MD2-CD14 KO-TLR4 cells were incubated for 24 hours with increasing concentration of rough (LPS-EK UP) and smooth (LPS-EB UP) LPS. After overnight incubation, the IRF response was assessed by measuring the activity of Lucia luciferase in the supernatant using QUANTI-Luc™. Data are shown in fold response over non-induced cells (mean ± SEM).

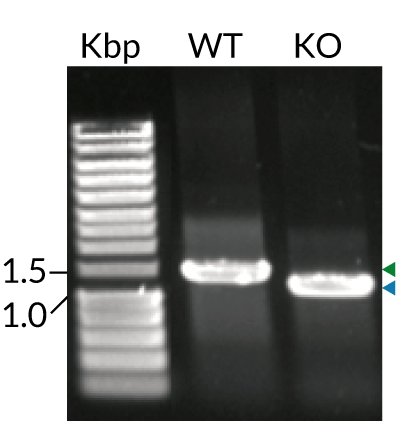

PCR validation of TLR4 KO in THP1-Dual™ MD2-CD14 KO-TLR4 cells
PCR validation of TLR4 KO in THP1-Dual™ MD2-CD14 KO-TLR4 cells

PCR validation of TLR4 KO in THP1-Dual™ MD2-CD14-KO-TLR4 cells. The targeted TLR4 region in THP1-Dual™ (WT; green arrow) parental cells and THP1-Dual™ MD2-CD14 KO-TLR4 (KO; blue arrow) cells was amplified by PCR. THP1-Dual™ MD2-CD14 KO-TLR4 cells feature a frameshift deletion, causing an early stop codon and inactivation of TLR4.

Back to the top

Specifications

Growth medium: RPMI 1640, 2 mM L-glutamine, 25 mM HEPES, 10% (v/v) fetal bovine serum (FBS), 100 U/ml penicillin, 100 µg/ml streptomycin, 100 µg/ml Normocin™

Antibiotic resistance: Blasticidin and Zeocin®

Quality Control:

  • MD-2 overexpression has been verified by RT-qPCR and functional assays.
  • CD14 overexpression has been verified by flow cytometry and functional assays.
  • Human TLR4 overexpression has been verified by flow cytometry and functional assays.
  • Human TLR4 KO has been verified by PCR, DNA sequencing, and functional assays.
  • The stability for 20 passages, following thawing, has been verified.
  • These cells are guaranteed mycoplasma-free.


InvivoGen's products are covered by a Limited Use License (See Terms and Conditions).

Back to the top

Contents

Please note: Each cell line is sold separately. See TDS for the exact contents of each cell line.

  • 3-7 x 106 THP1-Dual™ MD2-CD14-TLR4 cells OR THP1-Dual™ MD2-CD14 KO-TLR4 cells, in a cryovial or shipping flask
  • 1 ml of Normocin™ (50 mg/ml). Normocin™ is a formulation of three antibiotics active against mycoplasmas, bacteria, and fungi.
  • 1 ml of Zeocin® (100 mg/ml)
  • 1 ml of Blasticidin (10 mg/ml)
  • 1 tube of QUANTI-Luc™ 4 Reagent, a Lucia luciferase detection reagent (sufficient to prepare 25 ml)
  • 1 ml of QB reagent and 1 ml of QB buffer (sufficient to prepare 100 ml of QUANTI-Blue™ Solution, a SEAP detection reagent)

Dry Ice Shipped on dry ice (Europe, USA, Canada, and some areas in Asia)

Back to the top

Details



Types of LPS

Lipopolysaccharide (LPS) is a major constituent of the outer membrane of Gram-negative bacteria. It comprises three covalently linked regions:

LPS structure

  • the lipid A (endotoxin)
  • the rough core oligosaccharide
  • the O-antigenic side chain.



Wild-type LPS contains the O-side chain and is referred to as smooth (sLPS). Few bacterial strains (e.g. Salmonella Thyphimurium, Brucella canis) lost the O-side chain. This mutated form is called rough (rLPS). Both sLPS and rLPS share the same receptor complex (TLR4-MD-2-CD14), but their mechanism of action differs. While CD14 is necessary for sLPS NF-κB and IRF signaling, it is dispensible for rLPS NF-κB signaling. It has been hypothesized that rLPS activates a broader range of cells (CD14 positive, low and negative), accounting for higher toxicity [1].

Nevertheless, both LPS variations elicit potent innate immune responses. The resulting signaling triggers the release of pro‑inflammatory cytokines, which can lead to both acute and chronic inflammatory diseases. It is all about balance: small controlled amounts of LPS can be protective and large uncontrolled amounts can lead to disastrous outcomes, such as septic shock [2]. Contamination by LPS is a major threat for health, research and industry, as it can interfere with signaling cascades and cytokine production or induce septic shock in vivo [3]. Thus, its accurate detection as well as the discrimination between LPS-induced and non-LPS-induced signaling is crucial to obtain unbiased results and 'sterlie' products. However, despite its highly inflammatory nature, LPS has remarkable therapeutic potential and features many characteristics needed for an effective vaccine adjuvant [4].

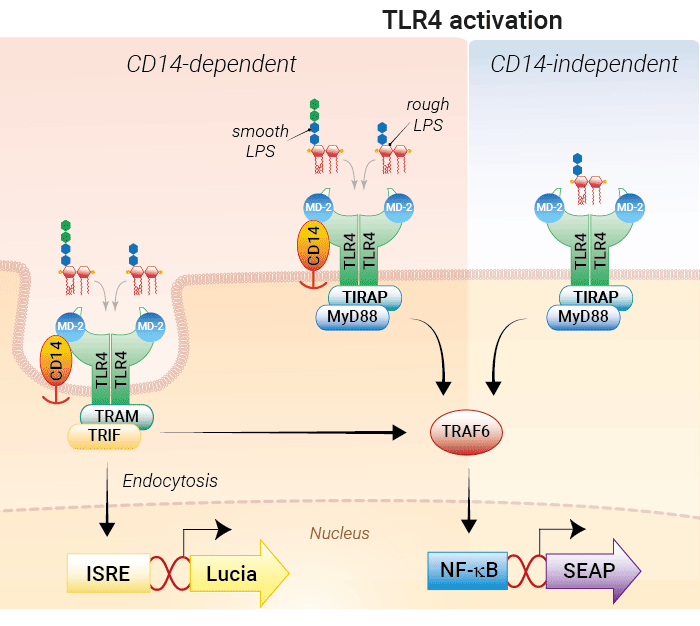

Toll-like receptor 4 signaling

The Toll-like receptor 4 (TLR4) was the first TLR identified and is an important pattern recognition receptor (PRR) in innate immunity and inflammation. It is found both on the cell surface and in endosomes of innate immune cells including monocytes and macrophages, as well as on intestinal epithelium and endothelial cells [5]. TLR4 can recognize pathogen- and damage-associated molecular patterns (PAMPs and DAMPs). However, it is primarily activated by lipopolysaccharide (LPS) and its toxic moiety Lipid A [6]. TLR4 does not directly interact with LPS, but requires essential adaptor proteins [3]. The soluble LPS-binding protein (LBP) extracts monomeric LPS from the microbial membrane and transfers it to CD14 (cluster of differentiation 14). This membrane-bound protein then interacts with MD-2 (myeloid differentiation factor 2), which is constitutively associated with the TLR4 ectodomain. The ligand-loaded MD-2 subsequently binds to another TLR4/MD-2/LPS complex, leading to their dimerization [7]. Then, TLR4 triggers two distinct signaling cascades [5]:

  • the MyD88-dependent activating NF-κB pathway (at the cell surface)
  • the TRIF-dependent activating IRF pathway (in endosomes)

At the cell surface, activation of TLR4 initiates the TIRAP-MyD88-dependent pathway, ultimately leading to the activation of NF-κB and the production of a pro-inflammatory response. Also, the TLR4 complex can be endocytosed into endosomes in a CD14-mediated fashion. This results in the the stimulation of IRF3 (interferon regulatory factor), which modulates the expression of type I IFN [3].

TLR4 signaling is crucial in both acute and chronic inflammatory disorders and thus, is an attractive target for novel treatments [5]. Stimulating drugs are useful for the development of vaccine adjuvants or cancer immunotherapeutics, whereas TLR4-inhibition is a therapeutic approach to treat septic shock or autoimmune inflammatory pathologies such as atherosclerosis [8].



References:

1. Zanoni I,.et al., 2012. Similarities and differences of innate immune responses elicited by smooth and rough LPS. Immunol Lett. 2012 Feb 29;142(1-2):41-7.
2. Godowski, P., 2005. A smooth operator for LPS responses. Nat Immunol 6, 544–546.
3. Kuzmich, N.N. et al. 2017. TLR4 Signaling Pathway Modulators as Potential Therapeutics in Inflammation and Sepsis. Vaccines (Basel) 5.
4. McAleer, J.P. & Vella, A.T., 2010.  Educating CD4 T cells with vaccine adjuvants: lessons from lipopolysaccharide. Trends Immunol 31, 429-435.
5. Ou, T. et al. 2018. The Pathologic Role of Toll-Like Receptor 4 in Prostate Cancer. Front Immunol 9, 1188.
6. Cochet, F. et al. 2017. The Role of Carbohydrates in the Lipopolysaccharide (LPS)/Toll-Like Receptor 4 (TLR4) Signalling. Int J Mol Sci 18
7.Tanimura N. et al. 2014. The attenuated inflammation of MPL is due to the lack of CD14-dependent tight dimerization of the TLR4/MD2 complex at the plasma membrane. Int Immunol.(6):307-14.
8. Romerio A, Peri F. 2020. Increasing the Chemical Variety of Small-Molecule-Based TLR4 Modulators: An Overview. Front Immunol.;11:1210.
