RAW-Dual™ Cells

Dual IRF-Lucia and MIP-2-SEAP murine macrophage reporter cell line

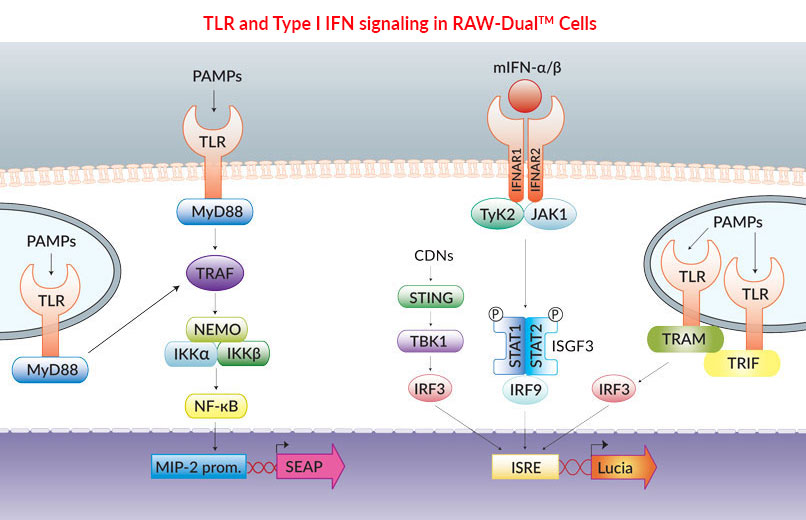

TLR and Type I IFN signaling in RAW-Dual™ Cells

RAW-Dual™ (IRF-Lucia/KI-[MIP-2]SEAP) cells were generated from RAW 264.7 murine macrophages, which express many pattern recognition receptors (PRRs) such as the Toll-like receptors (TLRs) TLR2 and TLR4 [1], the cytosolic DNA sensor (CDS) cGAS [2], and the cyclic dinucleotide (CDN) sensor STING [2].

RAW‑Dual™ cells stably express two reporter genes encoding SEAP (secreted embryonic alkaline phosphatase) and Lucia luciferase.

SEAP expression depends on the activation of the endogenous MIP-2 promoter. MIP‑2, also known as CXCL2, is the murine homolog of human IL-8, a chemokine produced in an NF-κB-dependent manner [3]. The MIP-2 ORF has been replaced by the SEAP ORF using knockin technology. Hence SEAP expression reports activation of NF-κB.

The Lucia luciferase gene is under the control of an ISG54 minimal promoter in conjunction with five IFN-stimulated response elements (ISRE). It reports the activation of interferon regulatory factors (IRFs).

Both reporter proteins are secreted and readily measurable in the cell culture supernatant using  QUANTI-Blue™ Solution, a SEAP detection reagent, and QUANTI-Luc™ 4 Lucia/Gaussia,  a Lucia and Gaussia luciferase detection reagent. Alternatively, SEAP activity can be detected using HEK-Blue™ Detection, a cell culture medium allowing real-time detection of SEAP.

As a result, RAW-Dual™ cells allow to simultaneously study the NF-κB pathway, by assessing the activity of SEAP, and the IRF pathway, by monitoring the activity of Lucia luciferase.

RAW-Dual™ Cells are resistant to Zeocin®.

References:

1. Underhill DM. et al., 1999. The Toll-like receptor 2 is recruited to macrophage phagosomes and discriminates between pathogens. Nature. 401:811-5.
2. Hornef MW. et al., 2003. Intracellular Recognition of Lipopolysaccharide by Toll-like Receptor 4 in Intestinal Epithelial Cells. J Exp Med.198:1225-35.
3. Tanaka Y. & Chen ZJ., 2012. STING specifies IRF3 phosphorylation by TBK1 in the cytosolic DNA signaling pathway. Sci Signal. 5(214):ra20.
4. Kim DS. et al., 2003. NF-kappaB and c-Jundependent regulation of macrophage inflammatory protein-2 gene expression in response to lipopolysaccharide in RAW 264.7 cells. Mol Immunol. 40(9):633-43.

Figures

RAW-Dual™ cells were stimulated with murine IFN-β (mIFN-β; 1x10⁴ U/ml), mIFN-α (1x10⁴ U/ml), LPS-EK Ultrapure (100 ng/ml; TLR ligand), poly(I:C) HMW (1 μg/ml; TLR3 ligand), Poly(I:C) HMW/LyoVec™ (1 μg/ml; RIG-I/MDA5 ligand), poly(dA:dT)/LyoVec™ (1 μg/ml; RIG-I ligand & cytosolic DNA sensor (CDS) ligand), VACV-70/LyoVec™ (1 μg/ml; CDS ligand), and 2’3’-cGAMP (10 μg/ml; STING ligand). After a 24h incubation, IRF activation was determined by measuring the relative light units (RLUs) in a luminometer using QUANTI-Luc™, a Lucia luciferase detection reagent. The IRF induction of each ligand is expressed relative to that of mIFN-β at 1 x 10⁴ U/ml (taken as 100%).

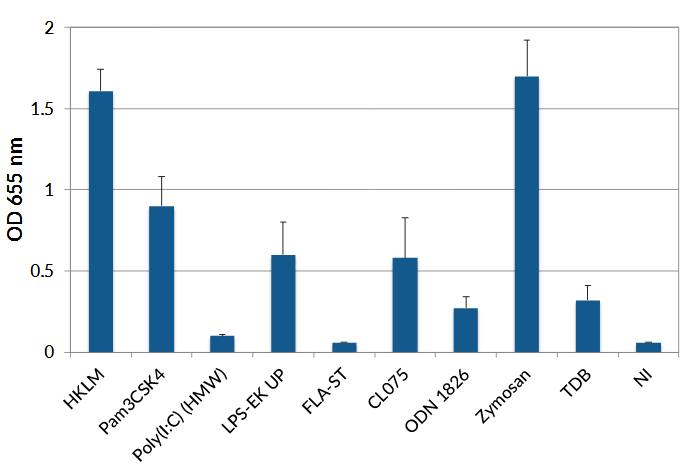

RAW-Dual™ cells were incubated with HKLM (1x10⁸ cells/ml; heat-killed Listeria monocytogenes, a TLR2 ligand), Pam3CSK4 (1 μg/ml; TLR2 ligand), poly(I:C) HMW (10 μg/ml; TLR3 ligand), LPS-EK Ultrapure (1 μg/ml; TLR4 ligand), FLA-ST (10 μg/ml; TLR5 ligand), CL075 (1 μg/ml; TLR 7/8 ligand), ODN 1826 (1 μg/ml; TLR9 ligand), Zymosan (10 μg/ml; TLR2 & Dectin-1 ligand), TDB (100 μg/ml; Mincle ligand). Non-induced cells (NI) have been included as a negative control. After a 24h incubation, NF-kB activation was determined using QUANTI-Blue™, a SEAP detection reagent, and by reading the optical density (OD) at 655 nm.

Specifications

Antibiotic resistance: Zeocin®

Quality Control:

• The biallelic replacement of the mouse MIP-2 (also known as CXCL2) gene with the SEAP reporter gene was verified by PCR and sequencing.
  The inability to produce MIP-2 has been confirmed by ELISA.
• Reporter activity has been verified by functional assays.
• Cell line stability for 20 passages following thawing has been verified.
• RAW-Dual™ cells are guaranteed mycoplasma-free.

Contents

• 3-7 x 10⁶ of RAW-Dual™ cells in a cryovial or shipping flask
• 1 ml Zeocin® (100 mg/ml)
• 1 ml Normocin™ (50 mg/ml)
• 1 ml of QB reagent and 1 ml of QB buffer (sufficient to prepare 100 ml of QUANTI-Blue™ Solution, a SEAP detection reagent)
• 1 tube of QUANTI-Luc™ 4 Reagent, a Lucia luciferase detection reagent (sufficient to prepare 25 ml)

Shipped on dry ice (Europe, USA, Canada, and some areas in Asia)
