IL-7 Reporter HEK 293 Cells

Product Unit size Cat. code Docs. Qty. Price

HEK-Blue™ IL-7 Cells

HEK 293 reporter cells for human and murine IL-7 cytokines

Show product

3-7 x 10e6 cells

hkb-il7
+-
$1,457

HEK-Blue™ IL-7 vial

Additional cell vial

Show product

3-7 x 10e6 cells

hkb-il7-av
+-

Notification:  Reference #hkb-il7-av can only be ordered together with reference #hkb-il7.

Interleukin-7 Reporter Cells

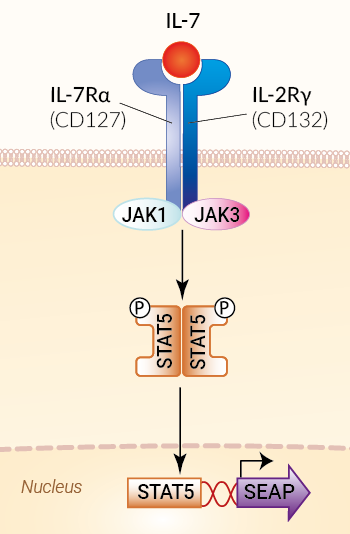

Signaling pathway in HEK-Blue™ IL-7 cells
Signaling pathway in HEK-Blue™ IL-7 cells

HEK-Blue™ IL-7 cells were engineered from the human embryonic kidney HEK 293 cell line to detect bioactive interleukin-7 (IL-7) by monitoring the activation of the JAK/STAT5 pathway. They can also be used for screening antibodies or small molecule inhibitors targeting the IL-7 pathway.

IL-7 is a secreted cytokine that plays an essential role in B cell and T cell development and function [1-4].

 More details



Cell line description

HEK-Blue™ IL-7 cells were generated by stable transfection with the genes encoding the human IL-7 receptor (IL-7Rα and IL-2Rγ chains), human JAK3, human STAT5b, and a STAT5-inducible secreted embryonic alkaline phosphatase (SEAP) reporter. The binding of IL-7 to its receptor triggers a signaling cascade leading to the activation of STAT5 and the subsequent production of SEAP. This can be readily assessed in the supernatant using QUANTI-Blue™ Solution, a SEAP detection reagent.

HEK-Blue™ IL-7 cells detect human and murine IL-7 (see figures). Of note, HEK‑Blue™ IL-7 cells also exhibit a moderate response to human IFN-γ but do not respond to human IFN-α (see figures).

Key features

  • Fully functional IL-7 signaling pathway
  • Readily assessable STAT5-inducible SEAP reporter activity
  • Strong response to human (h) and mouse (m) IL-7

Applications

  • Detection and quantification of hIL-7 and mIL-7 activity
  • Screening of anti-IL-7 and anti-IL-7 receptor antibodies
  • Screening of small molecule inhibitors of the IL-7 pathway



References:

1. Lin J. et al., 2017. The role of IL-7 in Immunity and Cancer. Anticancer Res. 37(3):963-7.
2. Ribeir D. et al., 2018. STAT5 is essential for IL-7-mediated viability, growth, and proliferation of T-cell acute lymphoblastic leukemia cells. Blood Adv. 2(17):2199-213.
3. Mackall C.L. et al., 2011. Harnessing the biology of IL-7 for therapeutic application. Nat Rev Immunol. 11(5):330-42.
4. Barata J.T. et al., 2019. Flip the coin: IL-7 and IL-7R in health and disease. Nat Immunol. 20(12):1584-93.

Figures

Validation of IL-7Rα expression
Validation of IL-7Rα expression

Validation of the expression of human IL-7Rα by HEK-Blue™ IL-7 cells.
5 x 105 cells were incubated with either an APC-conjugated isotype control (blue) or an APC-conjugated Anti-IL-7Rα mAb (red) for 30 minutes. The binding affinity was then measured using flow cytometry.

Cellular response to IL-7
Cellular response to IL-7

Dose-response of HEK-Blue™ IL-7 cells to recombinant IL-7.
Cells were stimulated with increasing concentrations of recombinant human IL-7 (hIL-7) and murine IL-7 (mIL-7). After overnight incubation, the STAT5 response was determined using QUANTI‑Blue™ Solution, a SEAP detection reagent. The optical density (OD) at 630 nm is shown as mean ± SEM.

IL-7 signaling inhibition
IL-7 signaling inhibition

Dose-dependent inhibition of HEK‑Blue™ IL-7 cellular response using a neutralizing antibody against IL-2Rγ, a subunit of IL‑7R.
The antibody was incubated with HEK-Blue™ IL-7 cells for 2 hours prior to the addition of hIL-7 (0.3 ng/ml). After overnight incubation, SEAP activity in the cell culture supernatant was assessed using QUANTI-Blue™ Solution. Data are shown as a percentage (%) of activity.

HEK-Blue™ IL-7 specificity
HEK-Blue™ IL-7 specificity

Response of HEK-Blue™ IL-7 cells to a panel of cytokines.
Cells were stimulated with various human and murine recombinant cytokines: 1 ng/ml of hIL-7 or mIL-7, and 100 ng/ml hIL-2, hIL-4, hIL‑6, hIL-9, mIL-9, hIL‑15, hIL-21, or hIL-27, and 1000 U/ml hIFN-α, and 10 ng/ml hIFN-γ. After overnight incubation, SEAP activity was assessed using QUANTI‑Blue™ Solution. The optical density (OD) at 630 nm is shown as mean ± SEM.

Back to the top

Specifications

Antibiotic resistance: Blasticidin, Hygromycin B, PuromycinZeocin®

Growth medium: DMEM, 4.5 g/l glucose, 2 mM L-glutamine, 10% (v/v) heat-inactivated fetal bovine serum, 100 U/ml penicillin, 100 μg/ml streptomycin, 100 μg/ml Normocin®

Specificity: Detects human IL-7 and mouse IL-7

Detection range:

  • Detection range for human IL-7: 100 pg/ml - 100 ng/ml
  • Detection range for murine IL-7: 100 pg/ml - 100 ng/ml

Quality Control:

  • SEAP reporter activity in response to IL-7 is validated using functional assays.
  • The stability for 20 passages following thawing is confirmed.
  • These cells are tested for mycoplasma contamination.



This product is covered by a Limited Use License (See Terms and Conditions).

Back to the top

Contents

Dry ice shipping Shipped on dry ice (Europe, USA, Canada and some areas in Asia)

Back to the top

Details

Interleukin 7 (IL-7) is a secreted cytokine that plays an essential role in B cell and T cell development and function [1]. IL-7 signals through the heterodimeric cell surface IL-7 receptor (IL-7R) consisting of IL-7Rα (also called CD127) and IL-2Rγ (also called the common γ-chain or CD132).
The binding of IL-7 to its receptor triggers three main signaling pathways: JAK/STAT, PI3K, and MAPK/ERK [1‑3]. Of note, IL-7R-mediated signaling triggers proliferative and anti‑apoptotic signals mainly by activating the JAK/STAT pathway [1-3]. IL-7/IL-7R signaling, which regulates lymphocyte growth and survival, has been implicated in the development of malignancies and autoimmune diseases [1-4].



1. Lin J. et al., 2017. The role of IL-7 in Immunity and Cancer. Anticancer Res. 37(3):963-7.
2. Ribeir D. et al., 2018. STAT5 is essential for IL-7-mediated viability, growth, and proliferation of T-cell acute lymphoblastic leukemia cells. Blood Adv. 2(17):2199-213.
3. Mackall C.L. et al., 2011. Harnessing the biology of IL-7 for therapeutic application. Nat Rev Immunol. 11(5):330-42.
4. Barata J.T. et al., 2019. Flip the coin: IL-7 and IL-7R in health and disease. Nat Immunol. 20(12):1584-93.

Back to the top

FAQ Cell Lines

Visit our FAQ Any questions about our cell lines ? Visit our frequently asked questions page

Back to the top

Notification:  This product is for internal research use only. Additional rights may be available. Please visit InvivoGen’s Terms and Conditions.
