Human TLR3 Reporter THP-1 Cells

Product Unit size Cat. code Docs. Qty. Price

THP1-Dual™ hTLR3 Cells

Human TLR3 Overexpressing - THP-1 Reporter Monocytes

Show product

3-7 x 10e6 cells

thpd-htlr3
+-
$1,752

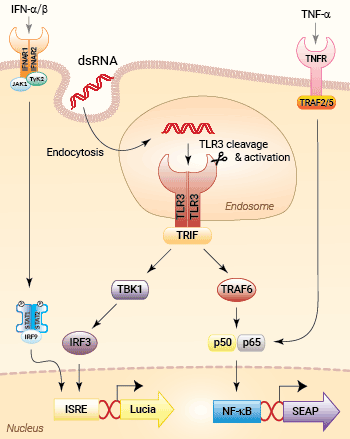

Reporter systems in THP1-Dual™ hTLR3 cells

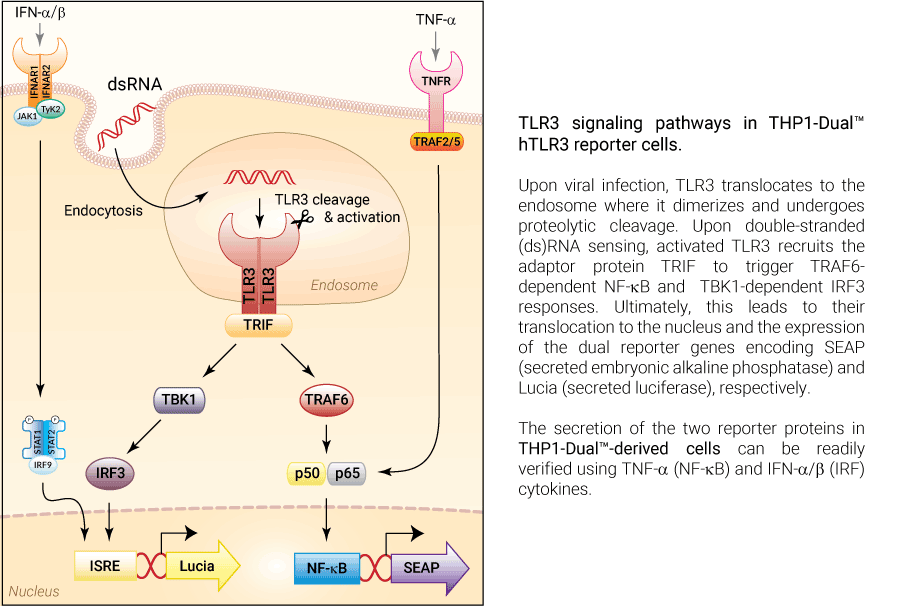

Reporter systems in THP1-Dual™ hTLR3 cells

Dual reporter monocytes for TLR3 pathway studies

InvivoGen offers a human monocyte-derived cell line, specifically designed for the study of human TLR3 (Toll-Like Receptor 3)-dependent signaling pathways:

— THP1-Dual™ hTLR3 cells

These cells were generated from the THP1-Dual™ cell line harboring two inducible reporter genes, allowing the simultaneous study of the NF-κB and IRF pathway, by monitoring the SEAP and Lucia luciferase activities, respectively.  They overexpress human TLR3 as well as important elements for its signaling upon double-stranded (ds)RNA stimulation.


THP1-Dual™ hTLR3 cells are responsive to synthetic analogs of dsRNA, in contrast to their parental cell line THP1-Dual™ (see figures). They show potent NF-κB and IRF responses upon incubation with TLR3-specific ligands, such as Poly(I:C) (polyinosinic-polycytidylic acids) or Poly(A:U) (polyadenylic–polyuridylic acid).

Of note, as THP-1 cells express endogenous levels of various TLRs [1] and THP1-Dual™ - derived cells respond to their cognate ligands (e.g. Pam3CSK4, LPS, flagellin) (see figures).


Upon recognition of viral or synthetic dsRNA, TLR3 mediates the transcriptional induction of type I interferons (IFNs), proinflammatory cytokines, and chemokines, thereby collectively establishing an antiviral host response [2].



Key features:

  • Stable overexpression of human TLR3 and important elements facilitating its signaling
  • Restored response to dsRNA and analogs
  • Distinct monitoring of TLR3-dependent NF-κB or IRF activation by assessing the SEAP and Lucia luciferase activities

Applications:

  • Defining the role of TLR3-dependent IRF and NF-κB signaling pathways
  • Screening for novel TLR3 agonists and inhibitors


References

1. Hornung V. et al. 2002. Quantitative expression of toll-like receptor 1-10 mRNA in cellular subsets of human peripheral blood mononuclear cells and sensitivity to CpG oligodeoxynucleotides. J Immunol.; 168(9):4531-7.
2. Chen Y, et al., 2021.  Toll-like receptor 3 (TLR3) regulation mechanisms and roles in antiviral innate immune responses. J Zhejiang Univ Sci B.;22(8):609-632.

Figures

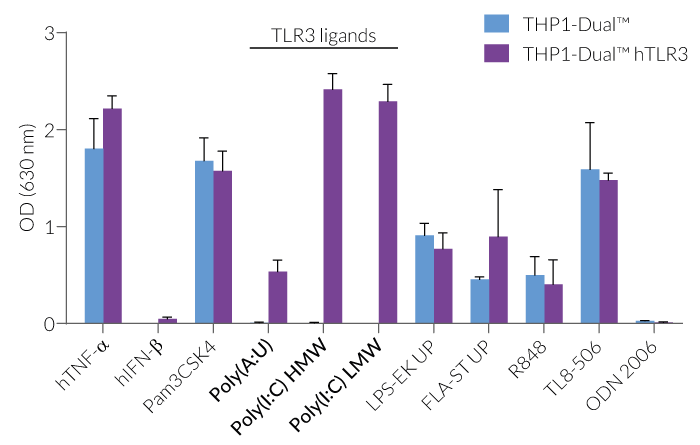

Functional validation of NF-κB response
Functional validation of NF-κB response

NF-κB responses in THP1-Dual™ -derived cells. THP1-Dual™ and THP1-Dual™ hTLR3 cells were incubated for 24 hours with various TLR agonists: Pam3CSK4 (TLR2 ligand, 10 ng/ml), Poly(A:U) (TLR3 ligand, 100 ng/ml), Poly(I:C) LMW and HMW (TLR3 ligands, 10 µg/ml), LPS-EK Ultrapure (UP) (TLR4 ligand, 1 ng/ml), FLA-ST UP (TLR5 ligand, 10 µg/ml), R848 (TLR7/8 ligand, 3 µg/ml), TL8-506 (TLR8 ligand, 1 µg/ml), and ODN 2006 (TLR9 ligand, 10 µg/ml). Human TNF-α (10 ng/ml) and hIFN-β (1000 U/ml) were used as an NF-kB-and IRF-positive control, respectively. After 24h incubation, the IRF response was assessed by measuring the activity of Lucia luciferase in the supernatant using QUANTI-Luc™. Data are shown in fold response over non-induced cells (mean ± SEM).

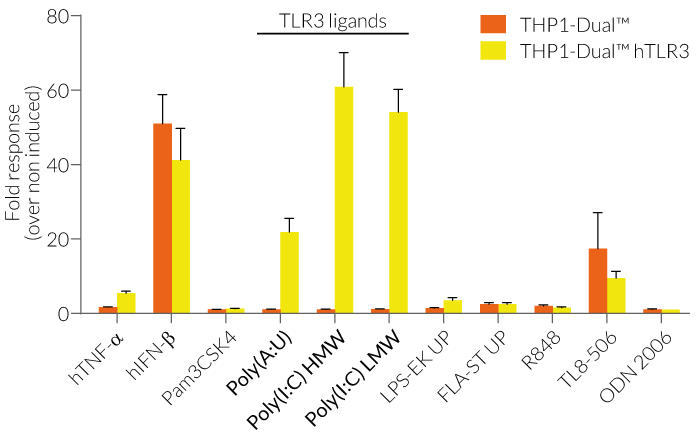

Functional validation of IRF response
Functional validation of IRF response

IRF responses in THP1-Dual™ -derived cells. THP1-Dual™ and THP1-Dual™ hTLR3 cells were incubated for 24 hours various TLR agonists: Pam3CSK4 (TLR2 ligand, 10 ng/ml), Poly(A:U) (TLR3 ligand, 100 ng/ml), Poly(I:C) LMW and HMW (TLR3 ligands, 10 µg/ml), LPS-EK Ultrapure (UP) (TLR4 ligand, 1 ng/ml), FLA-ST UP (TLR5 ligand, 10 µg/ml), R848 (TLR7/8 ligand, 3 µg/ml), TL8-506 (TLR8 ligand, 1 µg/ml), and ODN 2006 (TLR9 ligand, 10 µg/ml). Human TNF-α (10 ng/ml) and hIFN-β (1000 U/ml) were used as an NF-kB-and IRF-positive control, respectively. After 24h incubation, the IRF response was assessed by measuring the activity of Lucia luciferase in the supernatant using QUANTI-Luc™. Data are shown in fold response over non-induced cells (mean ± SEM).

Back to the top

Specifications

Growth medium: RPMI 1640, 2 mM L-glutamine, 25 mM HEPES, 10% (v/v) fetal bovine serum (FBS), 100 U/ml penicillin, 100 µg/ml streptomycin, 100 µg/ml Normocin™

Antibiotic resistance: Blasticidin and Zeocin®

Quality Control:

  • Human TLR3 expression has been verified by RT-qPCR and functional assays.
  • The stability for 20 passages, following thawing, has been verified.
  • These cells are guaranteed mycoplasma-free.


InvivoGen's products are covered by a Limited Use License (See Terms and Conditions).

Back to the top

Contents

  • 3-7 x 106 THP1-Dual™ hTLR3 cells in a cryovial or shipping flask
  • 1 ml of Blasticidin (10 mg/ml)
  • 1 ml of Zeocin® (100 mg/ml)
  • 1 ml of Normocin™ (50 mg/ml). Normocin™ is a formulation of three antibiotics active against mycoplasmas, bacteria, and fungi.
  • 1 ml of QB reagent and 1 ml of QB buffer (sufficient to prepare 100 ml of QUANTI-Blue™ Solution, a SEAP detection reagent)
  • 1 tube of QUANTI-Luc™ 4 Reagent, a Lucia luciferase detection reagent (sufficient to prepare 25 ml)

Dry Ice Shipped on dry ice (Europe, USA, Canada and some areas in Asia)

Back to the top

FAQ Cell Lines

Visit our FAQ Any questions about our cell lines ? Visit our frequently asked questions page

Back to the top

Details

Toll-Like Receptor 3

In humans, four Toll-Like Receptor (TLR) family members TLR3, TLR7, TLR8, and TLR9 are specialized in sensing viral-derived components and are mainly found in the endosome. Among these, TLR3 recognizes double-stranded (ds)RNA, a hallmark of viral replication, and triggers antiviral immune responses [1]. TLR3 is expressed in myeloid dendritic cells, macrophages, as well as non-immune cells [2].

TLR3 signaling

TLR3 activation upon viral infection involves several steps, including translocation of TLR3 from the ER (endoplasmic reticulum) via the Golgi to the endosome, proteolytic cleavage and dimerization of TLR3, and finally receptor-ligand binding [3]. In order to start the signaling cascade, activated TLR3 recruits the adaptor protein TRIF (TIR domain-containing adapter-inducing interferon-β). TRIF binds to TRAF3 (TNF receptor-associated factor 3), which then recruits TBK1 (TANK-binding kinase 1) and IKKε (IκB kinase ε), thus activating the transcription factor IRF3 (interferon regulatory factor 3) and stimulating the production of type I IFNs (interferons). Additionally, TRIF interacts with TRAF6 and RIP1 (kinase receptor-interacting protein 1). RIP1 in turn binds to TAK1 (transforming growth factor β-activated kinase 1) and IKK. TAK1 phosphorylates IKKα and IKKβ, leading to the phosphorylation of IκB, the NF-κB inhibitor. Ultimately, this leads to the release and translocation of NF-κB into the nucleus and the induction of pro-inflammatory cytokines [2,4].

Pathology

Given its important role in dsRNA recognition, TLR3 signaling has been intensively studied. Various TLR3-agonists, such as the synthetic dsRNA analog Poly(I:C) are being used in vaccine development and cancer therapy [4]. Yet, recent studies have indicated that TLR3 may act as a double-edged sword by showing both protective and damaging functions in the context of some human viral infections [3,5]. Moreover, rare mutations in TLR3 have been associated with viral susceptibility; specifically, infections with HSV-1 (herpes simplex virus 1), influenza, and SARS-Co-V2 have been linked to pathogenic germline variants in TLR3 pathway genes [2]. Understanding the TRIF-dependent TLR3 pathway may be essential for the establishment of specific therapeutic approaches to diminish TLR3-driven disease and exploit its protective functions [3].





References

1. Manuela Sironi, et al., 2012. A Common Polymorphism in TLR3 Confers Natural Resistance to HIV-1 Infection. J Immunol 15; 188 (2): 818–823.
2. Aluri, J, et al., 2021. Toll-Like Receptor Signaling in the Establishment and Function of the Immune System. Cells, 10, 1374.
3. Chen Y, et al., 2021.  Toll-like receptor 3 (TLR3) regulation mechanisms and roles in antiviral innate immune responses. J Zhejiang Univ Sci B.;22(8):609-632.
4. Komal A, et al., 2021. TLR3 agonists: RGC100, ARNAX, and poly-IC: a comparative review. Immunol Res. 69(4):312-322.
5. Perales-Linares R, Navas-Martin S. 2013. Toll-like receptor 3 in viral pathogenesis: friend or foe? Immunology.;140(2):153-67.

Back to the top

Notification:  This product is for internal research use only. Additional rights may be available. Please visit InvivoGen’s Terms and Conditions.
