THP1-Dual™ KO-MDA5 Cells

Product Unit size Cat. code Docs. Qty. Price

THP1-Dual™ KO-MDA5 Cells

Human THP-1 Monocytes - MDA5 knockout NF-κB-SEAP and IRF-Lucia Reporter Cells

Show product

3-7 x 10e6 cells

thpd-komda5
+-
$1,752

KO-MDA5 dual reporter monocytes for RLR pathway studies

Reporter systems in THP1-Dual™-derived cells
Reporter systems in THP1-Dual™-derived cells



InvivoGen offers a new series of THP1-Dual™ cell lines,  derived from the human THP-1 monocytic cell line, and specifically designed for assessing the role of RIG-I, MDA5, and MAVS in the cytosolic RNA sensing pathways.

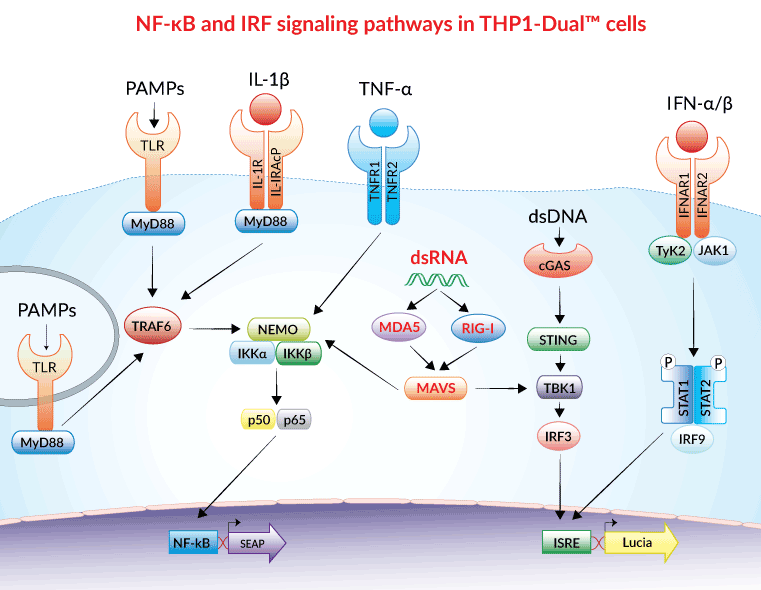

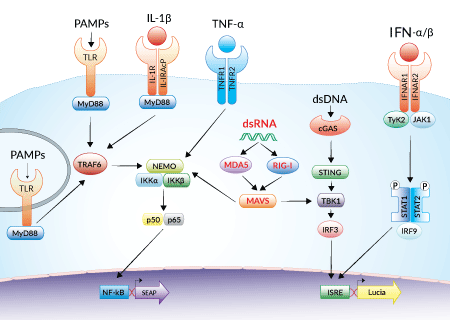

THP1-Dual™ KO-MDA5 cells express two inducible reporter genes, allowing the concomitant study of the IRF and NF-κB pathways, by monitoring the Lucia luciferase and SEAP (secreted embryonic alkaline phosphatase) activities, respectively. In addition, these cells feature a stable knockout of the MDA5 ((Melanoma Differentiation Associated gene 5) gene.



RIG-I and MDA5 are two distinct sensors of viral double-stranded RNA (dsRNA), a replication intermediate for RNA viruses [1-3]. Upon recognition of dsRNA, RIG-I and MDA5 are recruited by the MAVS adaptor to the outer membrane of the mitochondria leading to the activation of several transcription factors, including interferon regulatory factors (IRFs) and NF-κB [3].

More details More details



KEY FEATURES

  • Verified knockout of the MDA5 gene (PCR, DNA sequencing, Western blot, and functional assays)
  • Functionally validated with a selection of PRR ligands and cytokines
  • Readily assessable Lucia luciferase and SEAP reporter activities
  • The stability for 20 passages, following thawing, has been verified
  • Guaranteed mycoplasma-free

APPLICATIONS

  • Defining the role of MDA5 in cytosolic RNA sensing pathways
  • Highlighting possible overlap between RIG-I/MDA5 and STING signaling functions
  • Developing novel specific inhibitors of the RLR signaling pathway



References

1. Gebhardt A. et al., 2017. Discrimination of Self and Non-Self Ribonucleic Acids. Journal of Interferon & Cytokine Research 37: 184-97.
2. Pichlmair A. et al., 2006. RIG-I mediated antiviral responses to single-stranded RNA bearing 5’-phosphates. Science 314:997-1001.
3. Kawai T. et al., 2005. IPS-1, an adaptor triggering RIG-I- and Mda5-mediated type I interferon induction. Nat Immunol. 6(10):981-988.

Figures

Validation of MDA5 knockout
Validation of MDA5 knockout

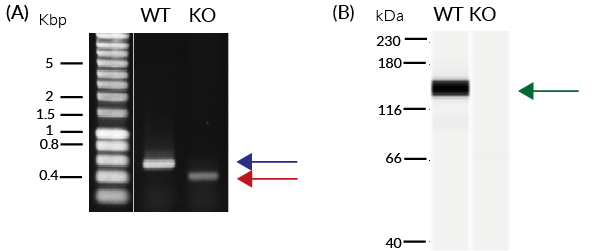

Validation of MDA5 KO.
(A) The targeted MDA5 region in THP1-Dual™ (WT; blue arrow) parental cells and THP1-Dual™ KO-MDA5 (KO; red arrow) cells was amplified by PCR. THP1-Dual™ KO-MDA5 cells feature a frameshift deletion, causing an early stop codon and inactivation of MDA5.  (B) Lysates from THP1-Dual™ (WT) and THP1-Dual™ KO-MMDA5(KO) cells were analyzed using an anti-human MDA5 antibody (green arrow), followed by a HRP-conjugated anti-rabbit secondary antibody (WES assay). As expected, a band was detected at ~135 KDa in the WT cells only.

Functional validation of MDA5 knockout (IRF response)
Functional validation of MDA5 knockout (IRF response)

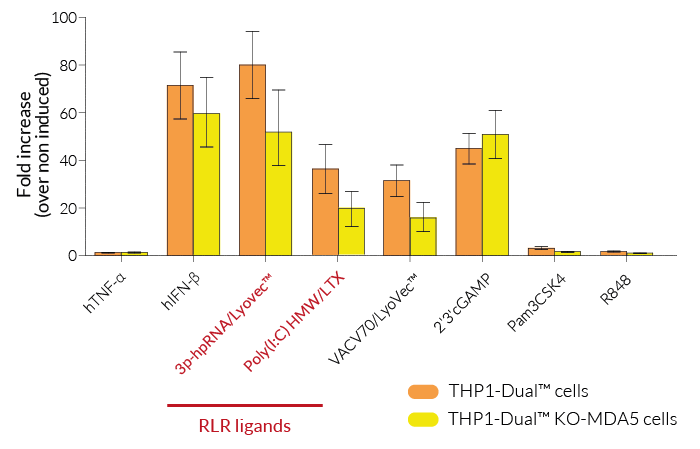

IRF responses in THP1-Dual™-derived cells.
THP1-Dual™ (WT) and THP1-Dual KO-MDA5 cells were incubated with 1 ng/ml human TNF-α (hTNF-α), or 104 U/ml human IFN-β (hIFN-β), 300 ng/ml 3p-hpRNA/Lyovec, 1 μg/ml Poly(I:C) HMW/LTX, 1 μg/ml VACV-70/Lyovec, 3 μg/ml 2’3’-cGAMP, 3 ng/ml Pam3CSK4, or 1 μg/ml R848. After overnight incubation, the IRF response was assessed by measuring Lucia luciferase activity in the supernatant using QUANTI-Luc. Data are shown as a fold change (mean ± SEM) over non-induced cells.

Functional validation of MDA5 knockout (NF-κB response)
Functional validation of MDA5 knockout (NF-κB response)

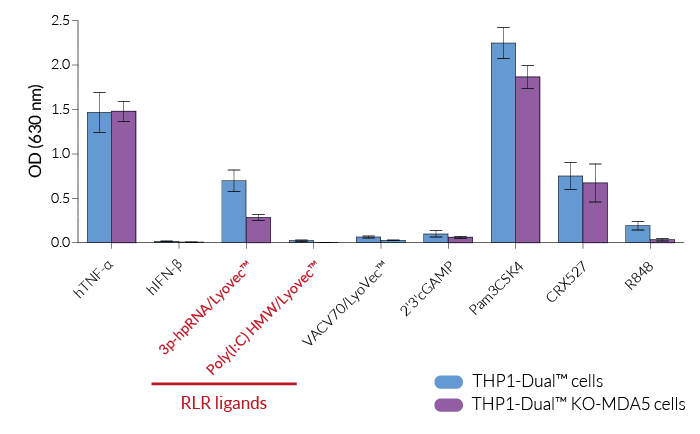

 NF-κB responses in THP1-Dual™- derived cells.
THP1-Dual
(WT) and THP1-Dual KO-MDA5 cells were incubated with 1 ng/ml human TNF-α (hTNF-α), or 104 U/ml human IFN-β (hIFN-β), 300 ng/ml 3p-hpRNA/Lyovec, 1 μg/ml Poly(I:C) HMW/LTX, 1 μg/ml VACV-70/Lyovec, 3 μg/ml 2’3’-cGAMP, 3 ng/ml Pam3CSK4, or 1 μg/ml R848. After overnight incubation, the NF-κB activity was assessed by measuring the SEAP activity in the supernatant using QUANTI-Blue Solution. Data are shown as optical density (OD) at 630 nm (mean ± SEM).

Back to the top

Specifications

Growth medium: RPMI 1640, 2 mM L-glutamine, 25 mM HEPES, 10% (v/v) fetal bovine serum (FBS), 100 U/ml penicillin, 100 µg/ml streptomycin, 100 µg/ml Normocin™

Antibiotic resistance: Blasticidin and Zeocin®

Quality Control:

  • Biallelic MDA5 knockout has been verified by PCR, DNA sequencing, and functional assays.
  • The stability for 20 passages, following thawing, has been verified.
  • These cells are guaranteed mycoplasma-free.
Back to the top

Contents

  • 3-7 x 106 cells in a cryovial or shipping flask
  • 1 ml of Blasticidin (10 mg/ml)
  • 1 ml of Zeocin® (100 mg/ml)
  • 1 ml of Normocin™ (50 mg/ml). Normocin™ is a formulation of three antibiotics active against mycoplasmas, bacteria, and fungi.
  • 1 ml of QB reagent and 1 ml of QB buffer (sufficient to prepare 100 ml of QUANTI-Blue™ Solution, a SEAP detection reagent)
  • 1 tube of QUANTI-Luc™ 4 Reagent, a Lucia luciferase detection reagent (sufficient to prepare 25 ml)

Dry ice shipping Shipped on dry ice (Europe, USA, Canada, and some areas in Asia)

Back to the top

Details

MDA5 (melanoma-differentiation-associated gene 5, also known as Ifih1 or Helicard)

MDA5 is a cytoplasmic RNA helicase that plays an important role in antiviral response. It senses long double-stranded RNA (dsRNA), a replication intermediate for RNA viruses, leading to the production of type I interferons (IFNs) [1]. MDA-5 and the related RNA helicase RIG-I recognize a complementary set of cytosolic viral dsRNA. Transfected Poly(I:C), a synthetic analog of viral dsRNA, is recognized by both MDA-5 and RIG-I.

RIG-I (retinoic-acid-inducible protein 1, also known as Ddx58)

RIG-I is a cytoplasmic RNA helicase that is critical for host antiviral responses. It senses double-stranded RNA (dsRNA), a replication intermediate for RNA viruses, leading to the production of type I interferons (IFNs) [1]. RIG-I binds specifically to short dsRNAs that have blunt ends and a 5’-triphosphate (5’-ppp) moiety, facilitating discrimination between host and viral dsRNA [2].

MAVS (mitochondrial antiviral-signaling protein, also known as IPS‑1, CARDIF, VISA)

MAVS is an adaptor protein that plays a critical role in the immune response to viral infection. The innate immune system senses intracellular double-stranded RNA (dsRNA), a replication intermediate for RNA viruses, through two RNA helicases: retinoic acid-inducible gene-I (RIG-I) and melanoma differentiation-association gene 5 (MDA5). Upon recognition of dsRNA, RIG-I and MDA5 are recruited by MAVS to the outer membrane of the mitochondria leading to the activation of several transcription factors including interferon-regulatory factor 3 (IRF3), IRF7, and NF-κB. IRFs and NF-κB regulates the expression of type I interferons (IFNs) and pro-inflammatory cytokines, respectively [1, 3].



1. Gebhardt A. et al., 2017. Discrimination of Self and Non-Self Ribonucleic Acids. Journal of Interferon & Cytokine Research 37: 184-97.
2. Pichlmair A. et al., 2006. RIG-I mediated antiviral responses to single-stranded RNA bearing 5’-phosphates. Science 314:997-1001.
3. Kawai T. et al., 2005. IPS-1, an adaptor triggering RIG-I- and Mda5-mediated type I interferon induction. Nat Immunol. 6(10):981-988.

Back to the top

FAQ Cell Lines

Visit our FAQ Any questions about our cell lines ? Visit our frequently asked questions page

Back to the top

Disclaimer:  These cells are for internal research use only and are covered by a Limited Use License (See Terms and Conditions). Additional rights may be available.
